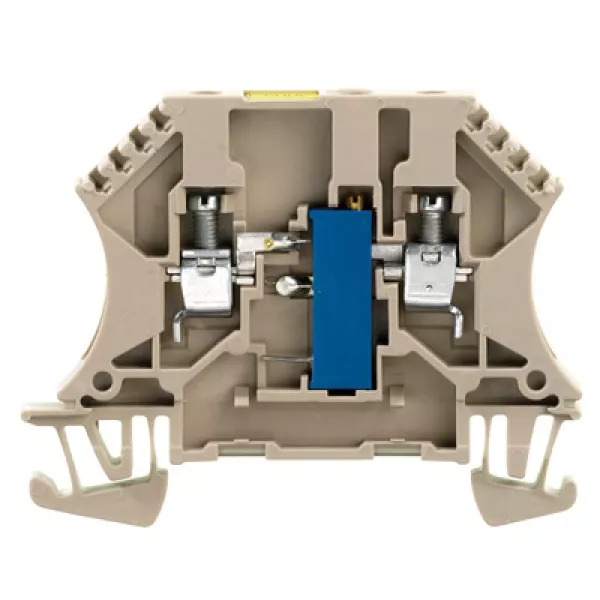

WDUL 4/500K Złączki szynowe z elementami elektronicznymi, nr.katalogowy 1028000000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1028000000 |
GTIN(EAN) | 4008190121433 |
Price unit | piece |
Catalog price | 108,24 zł (88,00 zł + 23% VAT) |
Sale price | from 52,23 zł (42,46 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków z elementami elektronicznymi.
Additional features:
Information | Value |
---|---|
ETIM class: | Component terminal block |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 6 mm² |
Connectable conductor cross section multi-wired: | 1.5 - 6 mm² |
Rated current In: | 0.12 A |
Type of electrical connection 1: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 6.5 mm |
Length: | 60 mm |
Closing plate required: | yes |
Colour: | Beige |
Type of component: | Potentiometer |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
ELEKTRA Poznań
Poznań, Sycowska 46
Poznań, Sycowska 46
Distance:
3 sztuki
52,23 zł/szt.
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2023-03-02 12:17:05 |
Files to download: | |
External links: |
