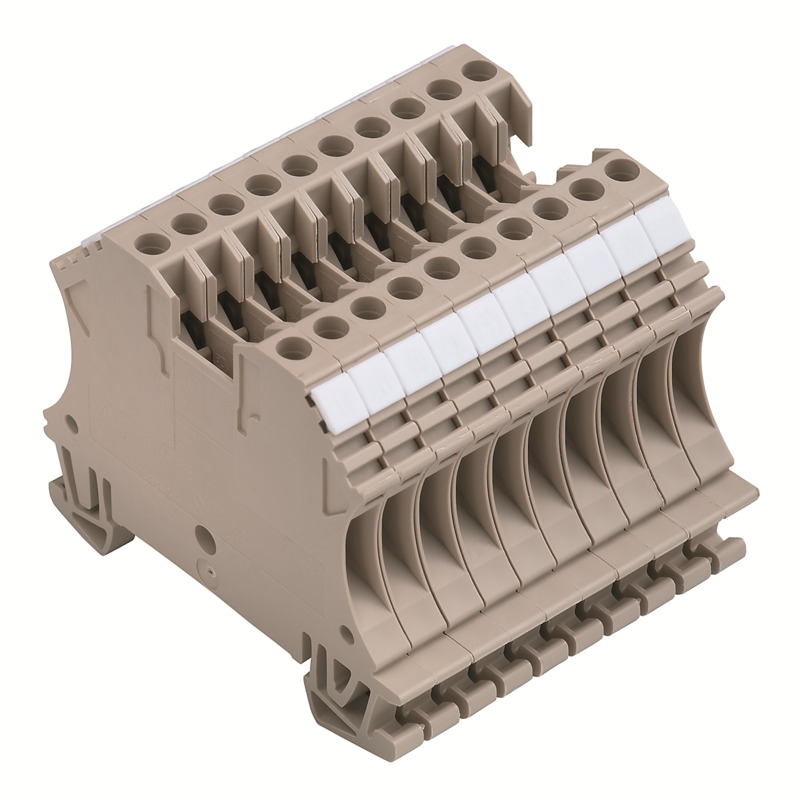

WDU 2.5/10 BEZ/NE Listwa zaciskowa jedno i wielobiegunowa, nr.katalogowy 1020800000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1020800000 |
| GTIN(EAN) | 4008190133368 |
| Price unit | piece |
| Catalog price | 56,40 zł (45,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Pasek zaciskowy przykręcany bezpośrednio do spodu obudowy.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Explosion-tested version 'Ex e': | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Rated current In: | 24 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 51 mm |
| Length: | 46.5 mm |
| Closing plate required: | yes |
| Colour: | Beige |
