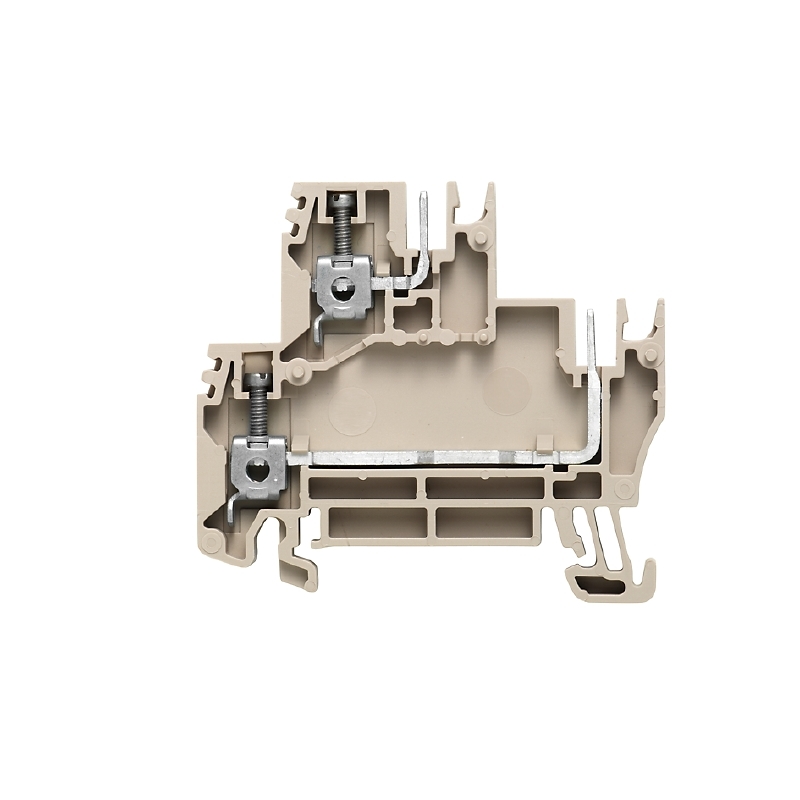

WDK 2.5 BLZ/7.62/ZA Złączka szynowa przelotowa, nr.katalogowy 1038500000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1038500000 |
GTIN(EAN) | 4008190861179 |
Price unit | piece |
Catalog price | 16,85 zł (13,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy z wieloma poziomami służący w celu podłączenia lub połączenia przewodników ze stałym bezpiecznym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Kompaktowa konstrukcja.
Additional features:
Information | Value |
---|---|
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
Rated current In: | 18.5 A |
Rated voltage: | 400 V |
Type of electrical connection 1: | Screw connection |
Connection position: | Sideways |
Number of levels: | 2 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 7.62 mm |
Length: | 58 mm |
Explosion-tested version 'Ex e': | no |
Closing plate required: | yes |
Colour: | Beige |
Internally connected stages: | no |
