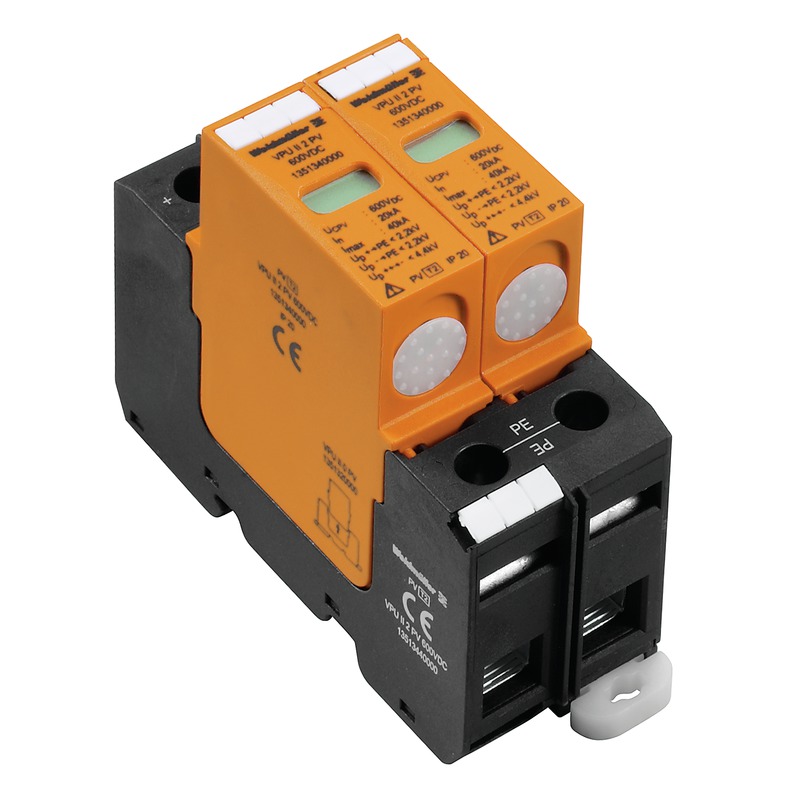

VPU II 2 PV 600V DC Ogranicznik przepięć klasy C, nr.katalogowy 1351340000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1351340000 |
| GTIN(EAN) | 4050118158731 |
| Price unit | piece |
| Catalog price | 401,05 zł (326,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | yes |
| Number of conductors (without earthing): | 2 |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal voltage DC: | 600 V |
| Max. discharge surge current (8/20): | 20 kA |
| Max. continuous voltage DC: | 600 V |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 2 modular spacing |
| Max. PV-voltage: | 600 V |
| Max. conductor cross section solid (solid, stranded): | 50 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| With remote signalling contact: | no |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
