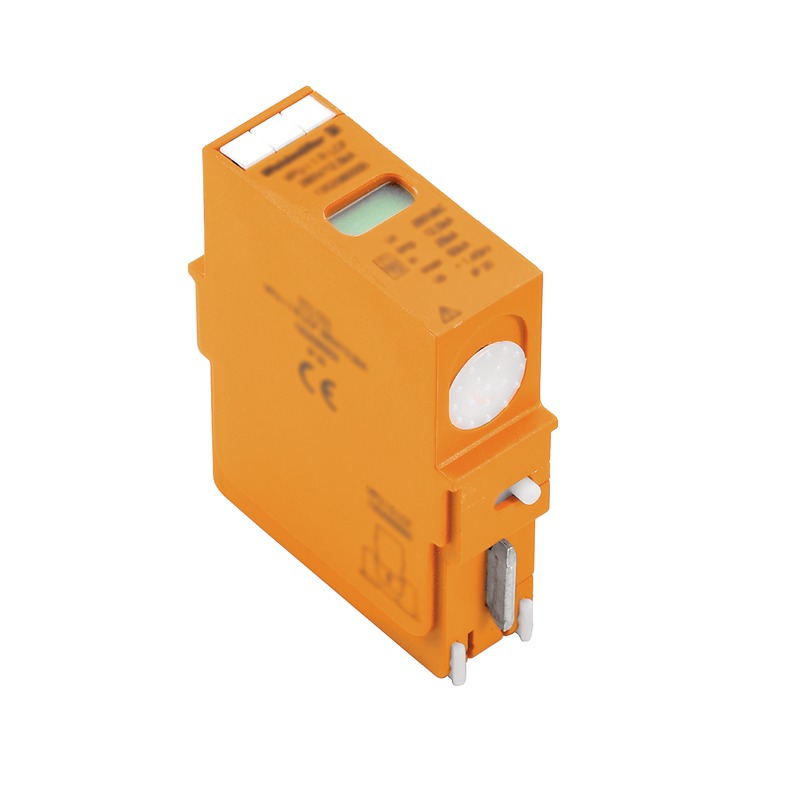

VPU II 0 600V/25KA Ogranicznik przepięć klasy C, nr.katalogowy 1352930000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1352930000 |
| GTIN(EAN) | 4050118157482 |
| Price unit | piece |
| Catalog price | 239,03 zł (194,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| Number of conductors (without earthing): | 1 |
| Nominal discharge surge current (8/20): | 12.5 kA |
| Nominal voltage AC: | 480 V |
| Short-circuit breaking capacity (Isccr): | 25 kA |
| Max. continuous voltage AC: | 600 V |
| Max. discharge surge current (8/20): | 12.5 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Voltage protection level: | 2.35 kV |
| Voltage protection level L-N: | 2.35 kV |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
