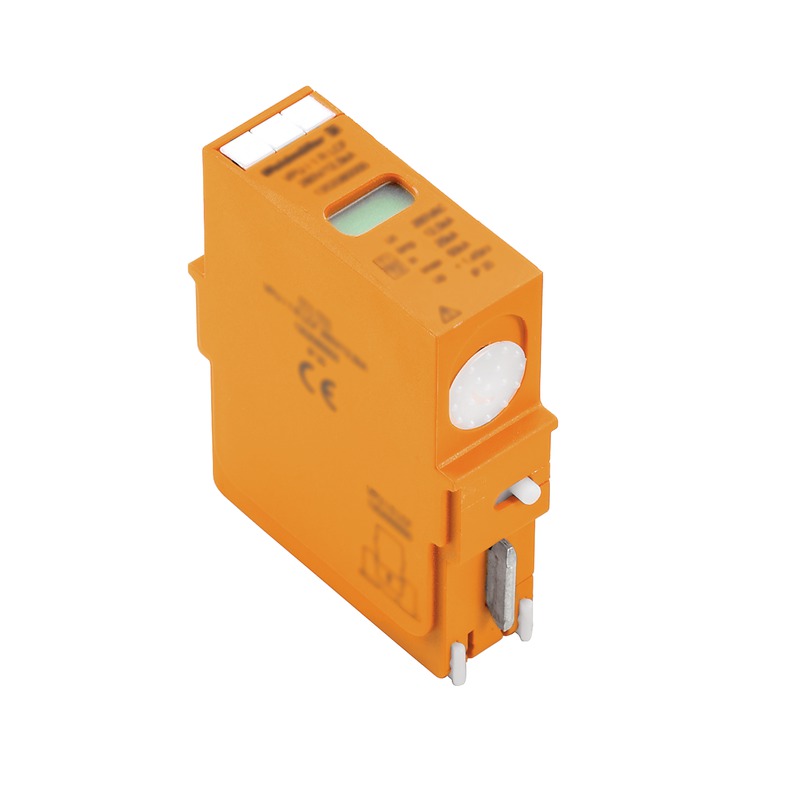

VPU II 0 1000V/40KA AC Ogranicznik przepięć klasy C, nr.katalogowy 1549700000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1549700000 |
| GTIN(EAN) | 4050118356182 |
| Price unit | piece |
| Catalog price | 744,59 zł (605,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| Number of conductors (without earthing): | 1 |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 830 V |
| Short-circuit breaking capacity (Isccr): | 25 kA |
| Max. continuous voltage AC: | 1000 V |
| Max. discharge surge current (8/20): | 20 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Voltage protection level: | 3.8 kV |
| Voltage protection level L-N: | 3.8 kV |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:21:40 |
| Files to download: |
