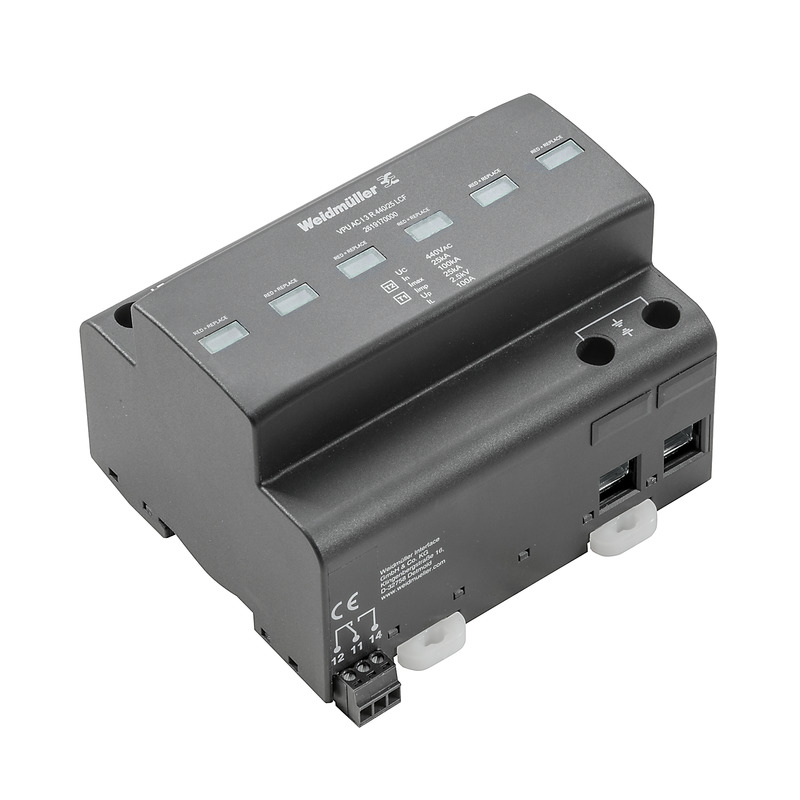

VPU AC I 3 R 440/25 LCF Ogranicznik przepięć klasy C, nr.katalogowy 2619170000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2619170000 |
| GTIN(EAN) | 4050118634617 |
| Price unit | piece |
| Catalog price | 2 363,54 zł (1 921,58 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | yes |
| Number of conductors (without earthing): | 4 |
| Nominal discharge surge current (8/20): | 25 kA |
| Nominal voltage AC: | 400 V |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Max. continuous voltage AC: | 440 V |
| Max. discharge surge current (8/20): | 25 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 6 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| With remote signalling contact: | yes |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
