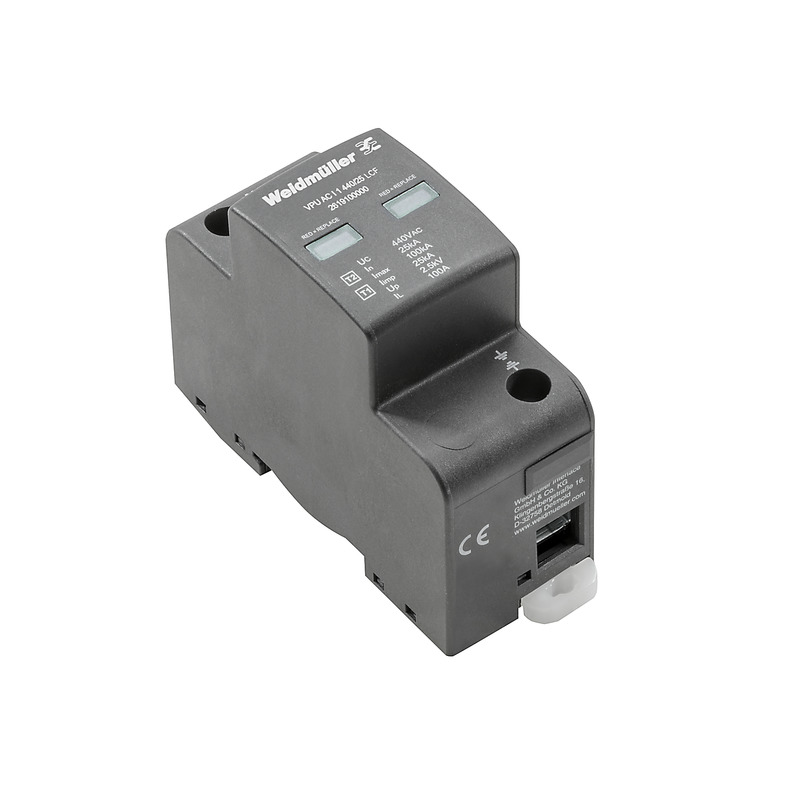

VPU AC I 1 440/25 LCF Ogranicznik przepięć klasy C, nr.katalogowy 2619100000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2619100000 |
| GTIN(EAN) | 4050118633962 |
| Price unit | piece |
| Catalog price | 846,10 zł (687,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | yes |
| Number of conductors (without earthing): | 1 |
| Nominal discharge surge current (8/20): | 25 kA |
| Nominal voltage AC: | 400 V |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Max. continuous voltage AC: | 440 V |
| Max. discharge surge current (8/20): | 25 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| Integrated backup fuse: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:28:15 |
| Files to download: | |
| External links: |
