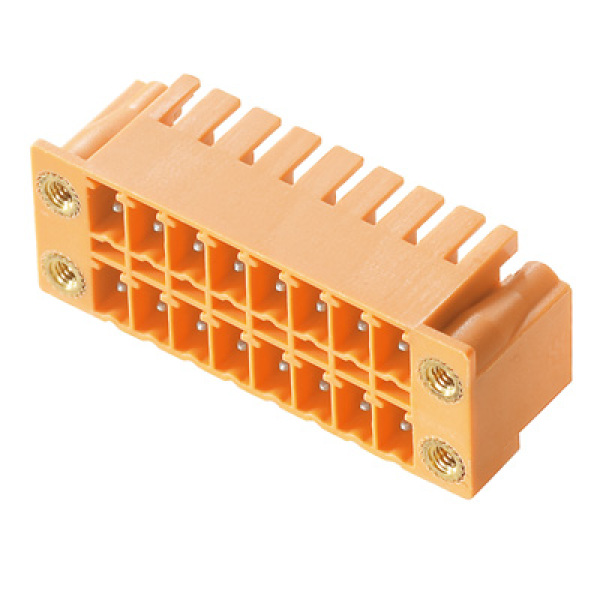

SCDN 3.81/10/90F 3.2SN OR BX Złącze wtykowe płytek drukowanych, nr.katalogowy 1040990000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1040990000 |
GTIN(EAN) | 4032248769834 |
Price unit | piece |
Catalog price | 20,17 zł (16,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
Information | Value |
---|---|
ETIM class: | Printed circuit board connector |
Type of connection: | Flexible PCB-connector |
Connector model: | Fixed connector |
Contact type: | Pin |
Number of poles: | 10 |
Number of plug-in contact rows: | 2 |
Modular spacing contacts: | 3.81 mm |
Modular spacing connections: | 3.81 mm |
Rated current In: | 17 A |
Rated voltage: | 160 V |
Rated surge voltage: | 2.5 kV |
Over voltage category: | II |
Pollution degree: | 2 |
Material of contact surface: | Tin |
Type of electric connection: | THR connection |
Length pin: | 3.2 mm |
Material insulation body: | Polyamide (PA) |
Housing colour: | Orange |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 120 °C |
Type of fastening: | Solder |
Type of banding: | Other |
