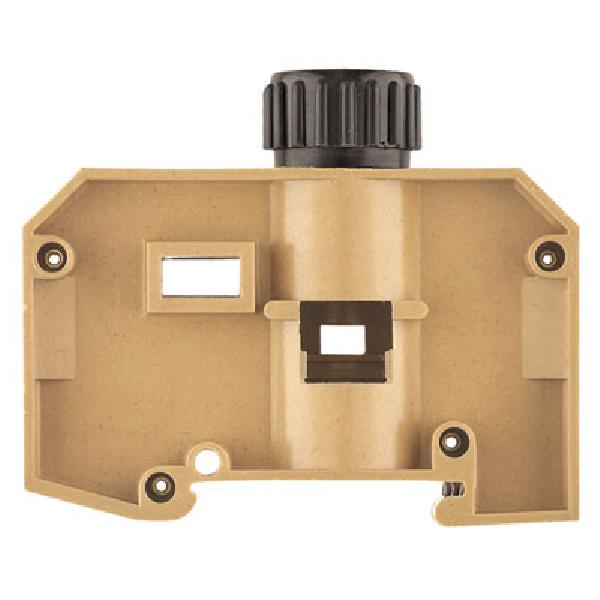

SAKS 4/35 USA Złączka szynowa z bezpiecznikiem, nr.katalogowy 0178220000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 0178220000 |
| GTIN(EAN) | 4008190095987 |
| Price unit | piece |
| Catalog price | 105,55 zł (85,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk bezpiecznika, Złącze śrubowe, element bezpiecznikowy, do przykręcanego połączenia poprzecznego, wolne z jednej strony, złącze śrubowe, 10 mm², 400 V, 16 A, 10 x 38 mm, TS 35, Jasnożółty,
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Type of fuse insert: | Miniature fuse 10.3x38 mm |
| Type of fuse holder: | Screwable |
| Type of indication element for defect indication: | None |
| Supply voltage for defect-indication: | 400 - 400 V |
| Voltage type for defect indication: | AC/DC |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 10 mm² |
| Rated current In: | 16 A |
| Rated voltage: | 400 V |
| Type of electrical connection 1: | Screw connection |
| Number of levels: | 1 |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Duroplast |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 24 mm |
| Length: | 75 mm |
| Closing plate required: | no |
| Colour: | Yellow |
