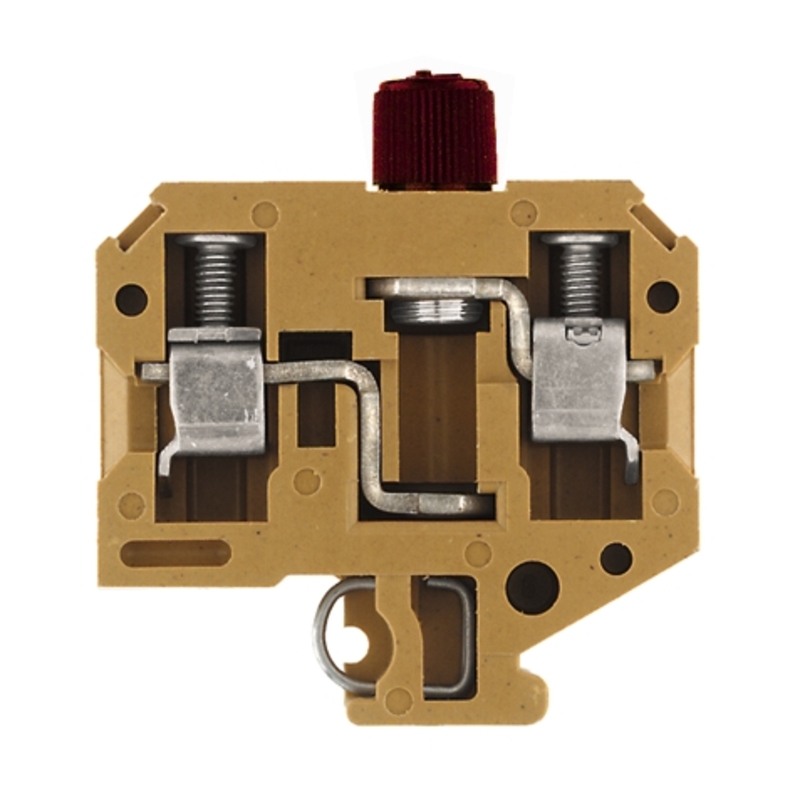

SAKS 3 Z/6.3X26 Złączka szynowa z bezpiecznikiem, nr.katalogowy 0211120000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 0211120000 |
GTIN(EAN) | 4008190177331 |
Price unit | piece |
Catalog price | 210,27 zł (170,95 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk bezpiecznika, Złącze śrubowe, element bezpiecznikowy, wolne z jednej strony, złącze śrubowe, 10 mm², 500 V, 10 A, G-Si. 1 x 1/4, TS 32, Jasnożółty,
Additional features:
Information | Value |
---|---|
ETIM class: | Fuse terminal block |
Type of fuse insert: | Other |
Type of fuse holder: | Screwable |
Type of indication element for defect indication: | None |
Supply voltage for defect-indication: | 500 - 500 V |
Voltage type for defect indication: | AC/DC |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 10 mm² |
Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
Connectable conductor cross section multi-wired: | 1.5 - 10 mm² |
Rated current In: | 10 A |
Rated voltage: | 500 V |
Type of electrical connection 1: | Screw connection |
Number of levels: | 1 |
Connection position: | Sideways |
Mounting method: | G-rail |
Material insulation body: | Duroplast |
Operating temperature: | -60 - 130 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 13 mm |
Length: | 54 mm |
Closing plate required: | yes |
Colour: | Yellow |
