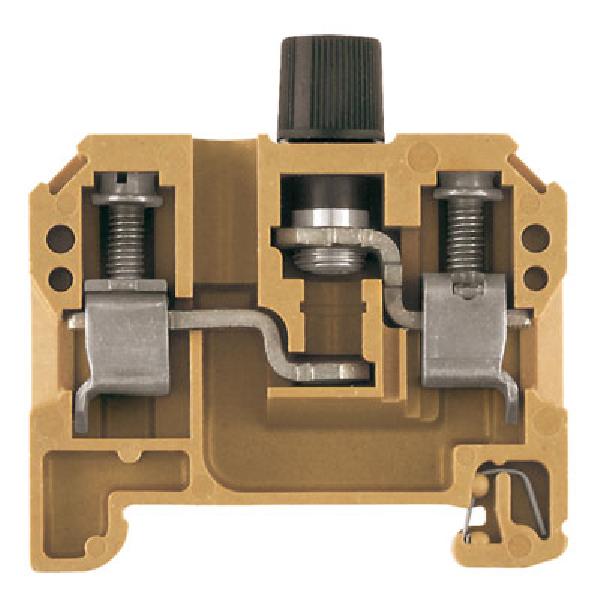

SAKS 1/35/G20 DB Złączka szynowa z bezpiecznikiem, nr.katalogowy 0501600000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 0501600000 |
| GTIN(EAN) | 4008190164843 |
| Price unit | piece |
| Catalog price | 70,27 zł (57,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk bezpiecznika, Złącze śrubowe, element bezpiecznikowy, wolne z jednej strony, złącze śrubowe, 10 mm², 500 V, 10 A, G-Si. 5 x 20, TS 35, Ciemnobeżowy,
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Type of fuse insert: | G-fuse 5x20 mm |
| Type of fuse holder: | Screwable |
| Type of indication element for defect indication: | None |
| Supply voltage for defect-indication: | 500 - 500 V |
| Voltage type for defect indication: | AC/DC |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 10 mm² |
| Rated current In: | 10 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Number of levels: | 1 |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Duroplast |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 13 mm |
| Length: | 54 mm |
| Closing plate required: | yes |
| Colour: | Beige |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:16:35 |
| Files to download: | |
| External links: |
