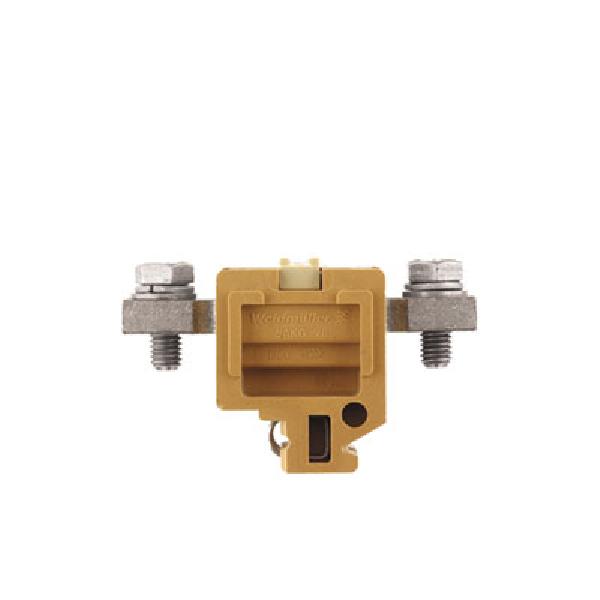

SAKG 70 II/GW Złączka szynowa przelotowa, nr.katalogowy 0150420000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 0150420000 |
| GTIN(EAN) | 4008190126841 |
| Price unit | piece |
| Catalog price | 167,14 zł (135,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisku przelotowego, złącze śrubowe, 70 mm², 1000 V, 192 A, liczba przyłączeń: 1, TS 32, Jasnożółty
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section solid-core: | 10 - 16 mm² |
| Rated current In: | 192 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | G-rail |
| Material insulation body: | Duroplast |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 32 mm |
| Length: | 84 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | yes |
| Colour: | Yellow |
| Internally connected stages: | no |
