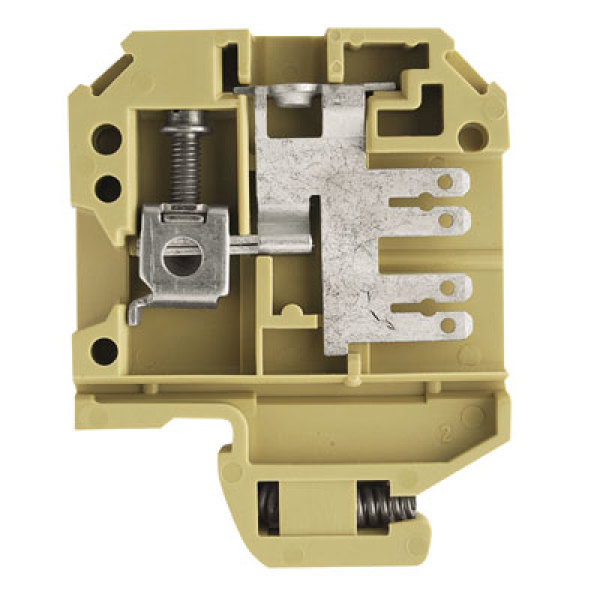

SAK 4 S 6.3/2.8 Złączka szynowa przelotowa, nr.katalogowy 0401260000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 0401260000 |
| GTIN(EAN) | 4008190134730 |
| Price unit | piece |
| Catalog price | 14,99 zł (12,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.33 - 6 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
| Rated current In: | 20 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 3 |
| Mounting method: | G-rail |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 100 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 6.5 mm |
| Length: | 40 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | yes |
| Colour: | Multi-coloured |
| Internally connected stages: | no |
