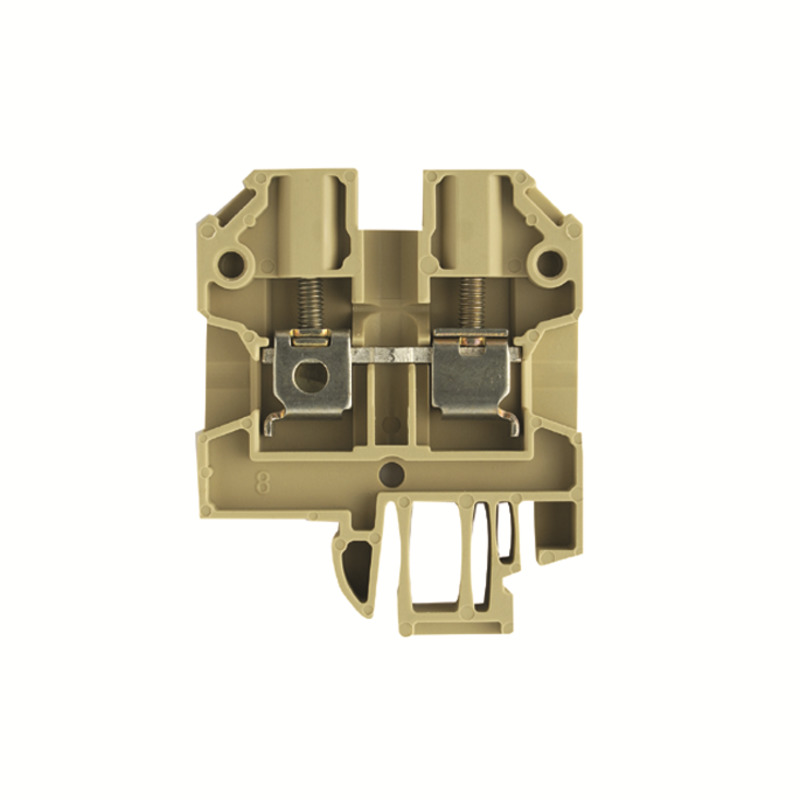

SAK 2.5 Złączka szynowa przelotowa, nr.katalogowy 0279660000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 0279660000 |
GTIN(EAN) | 4008190069926 |
Price unit | piece |
Catalog price | 8,89 zł (7,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo.
Additional features:
Information | Value |
---|---|
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section solid-core: | 0.5 - 6 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
Rated current In: | 24 A |
Rated voltage: | 800 V |
Type of electrical connection 1: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Mounting method: | G-rail |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 100 °C |
Inflammability class of insulation material according to with UL94: | V2 |
Width/grid dimension: | 6 mm |
Length: | 36.5 mm |
Explosion-tested version 'Ex e': | no |
Closing plate required: | yes |
Colour: | Multi-coloured |
Internally connected stages: | no |
