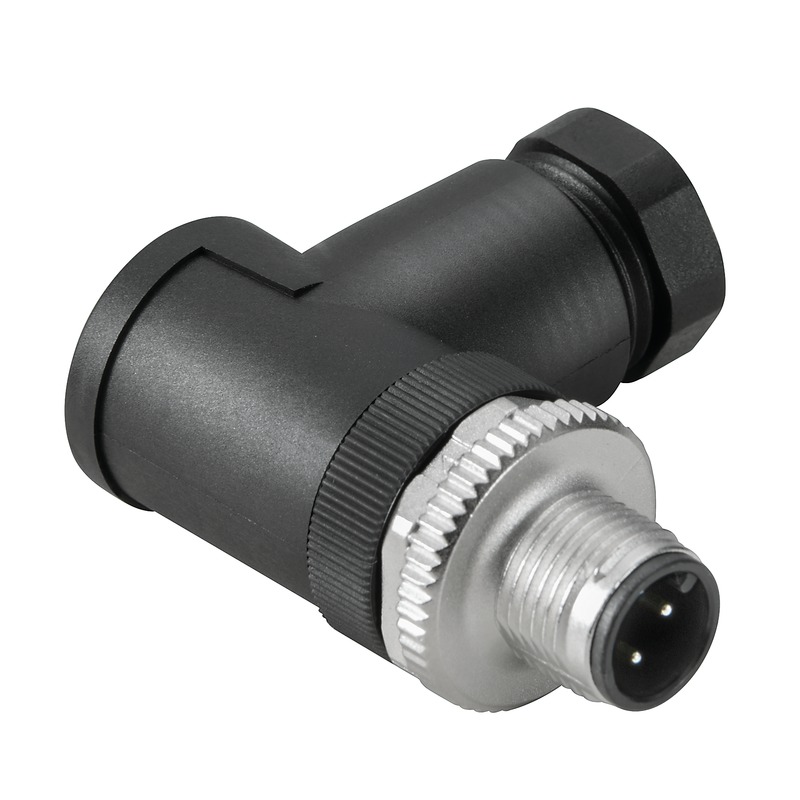

SAISW- 5/9 Złącze okrągłe (złącza przemysłowe), nr.katalogowy 1807370000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1807370000 |
GTIN(EAN) | 4032248278596 |
Price unit | piece |
Catalog price | 70,34 zł (57,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
Information | Value |
---|---|
ETIM class: | Circular connector for field assembly (industrial connector) |
Contact type: | Pin |
Number of data contacts: | 5 |
Number of power contacts: | 5 |
Number of control contacts: | 5 |
For cable outer diameter: | 6 - 8 mm |
Type of housing: | Angled |
Rated current In: | 4 A |
Rated voltage: | 60 V |
Pollution degree: | 3 |
Connectable conductor cross section multi-wired: | 0.14 - 0.75 mm² |
Type of electric connection: | Screw connection |
Material of contact surface: | Other |
Housing material: | Plastic |
Coating housing: | Plastic-coated |
Material thread ring: | Zinc die-cast |
Type of locking: | Gland nut |
Degree of protection (IP), mounted: | IP67 |
Screened: | no |
