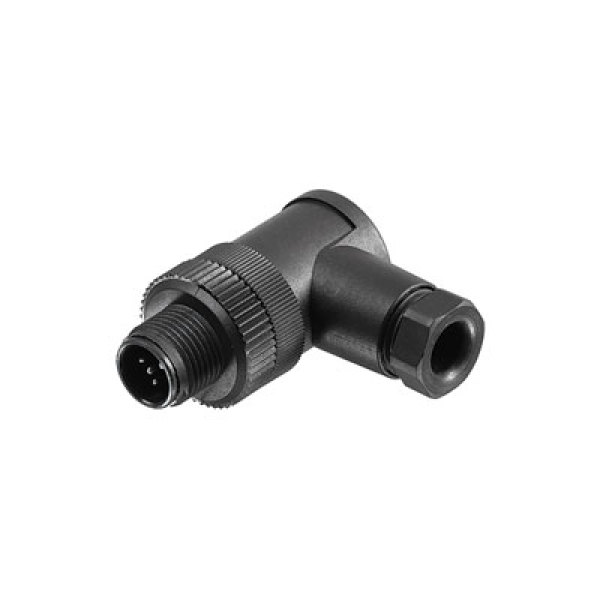

SAISW-5/9-(KV) Złącze okrągłe (złącza przemysłowe), nr.katalogowy 1007060000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1007060000 |
| GTIN(EAN) | 4032248708505 |
| Price unit | piece |
| Catalog price | 71,02 zł (57,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Contact type: | Pin |
| Number of data contacts: | 5 |
| Number of power contacts: | 5 |
| Number of control contacts: | 5 |
| For cable outer diameter: | 6 - 8 mm |
| Type of housing: | Angled |
| Rated current In: | 4 A |
| Rated voltage: | 60 V |
| Pollution degree: | 3 |
| Connectable conductor cross section multi-wired: | 0.14 - 0.75 mm² |
| Type of electric connection: | Screw connection |
| Material of contact surface: | Other |
| Housing material: | Plastic |
| Coating housing: | Plastic-coated |
| Material thread ring: | Plastic |
| Type of locking: | Gland nut |
| Degree of protection (IP), mounted: | IP67 |
| Screened: | no |
