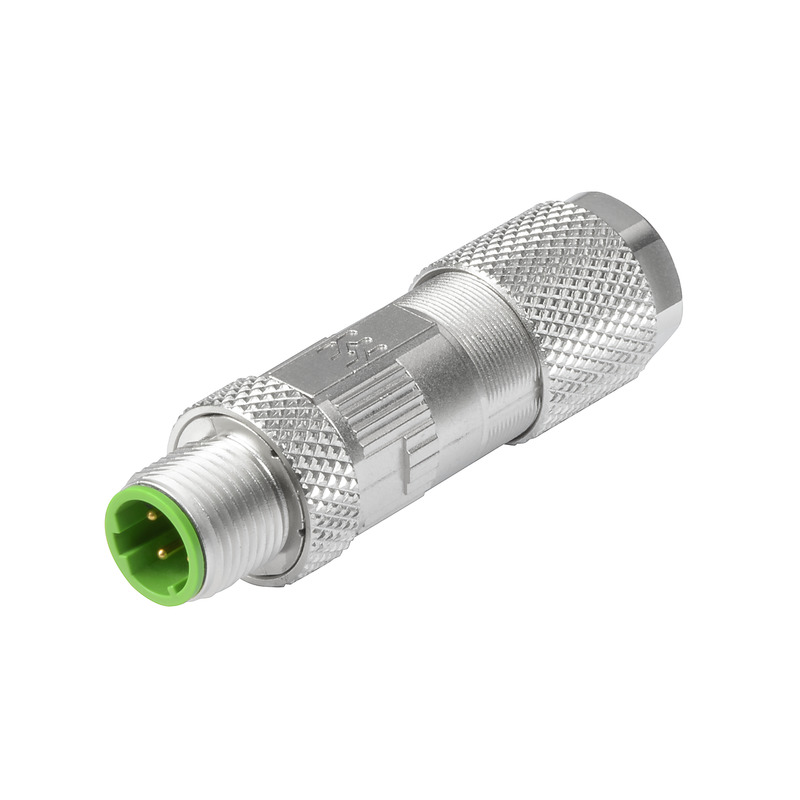

SAIS-M-4S-IDC-M12-D-COD Złącze okrągłe (złącza przemysłowe), nr.katalogowy 2544780000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2544780000 |
| GTIN(EAN) | 4050118554762 |
| Price unit | piece |
| Catalog price | 213,11 zł (173,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Number of data contacts: | 4 |
| Number of power contacts: | 4 |
| Number of control contacts: | 4 |
| For cable outer diameter: | 5 - 9.7 mm |
| Rated current In: | 1 A |
| Rated voltage: | 60 V |
| Pollution degree: | 3 |
| Connectable conductor cross section multi-wired: | 0.14 - 0.34 mm² |
| Type of electric connection: | Insulation displacement connection |
| Material of contact surface: | Nickel/gold |
| Housing material: | Zinc |
| Coating housing: | Other |
| Type of locking: | Other |
| Degree of protection (IP), mounted: | IP67 |
| Screened: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:27:41 |
| Files to download: |
