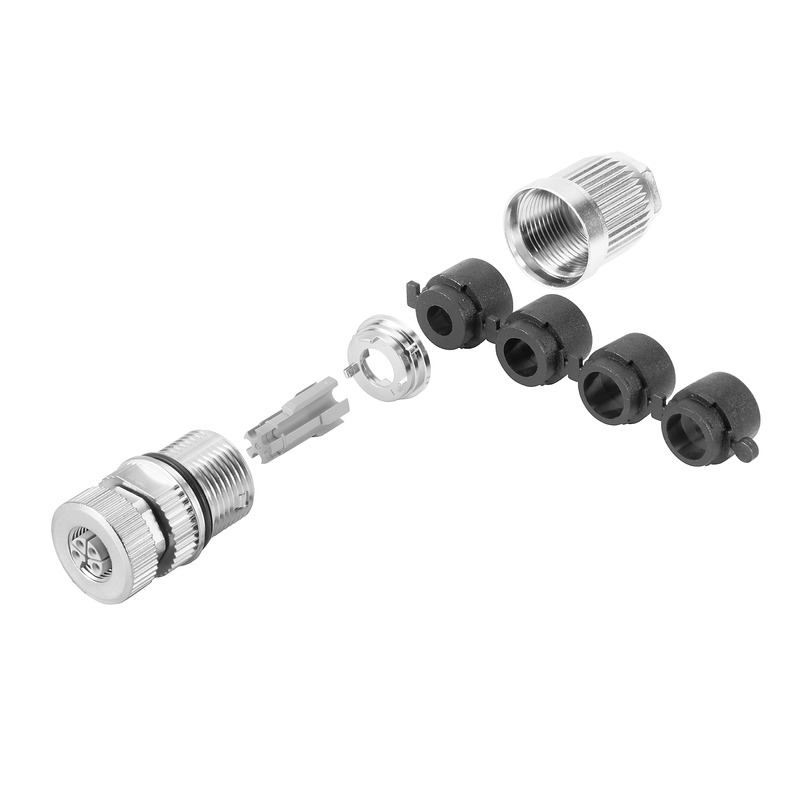

SAIBC-M-5S-M12-L-COD Złącze okrągłe (złącza przemysłowe), nr.katalogowy 2525620000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2525620000 |
| GTIN(EAN) | 4050118536935 |
| Price unit | piece |
| Catalog price | 189,32 zł (153,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Number of data contacts: | 5 |
| Number of power contacts: | 5 |
| Number of control contacts: | 5 |
| For cable outer diameter: | 5.8 - 13.5 mm |
| Rated current In: | 16 A |
| Rated voltage: | 63 V |
| Pollution degree: | 3 |
| Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
| Type of electric connection: | Crimp connection |
| Material of contact surface: | Gold |
| Housing material: | Zinc |
| Coating housing: | Other |
| Type of locking: | Other |
| Degree of protection (IP), mounted: | IP67 |
| Min. number of insertion cycles: | 500 |
| Screened: | yes |
