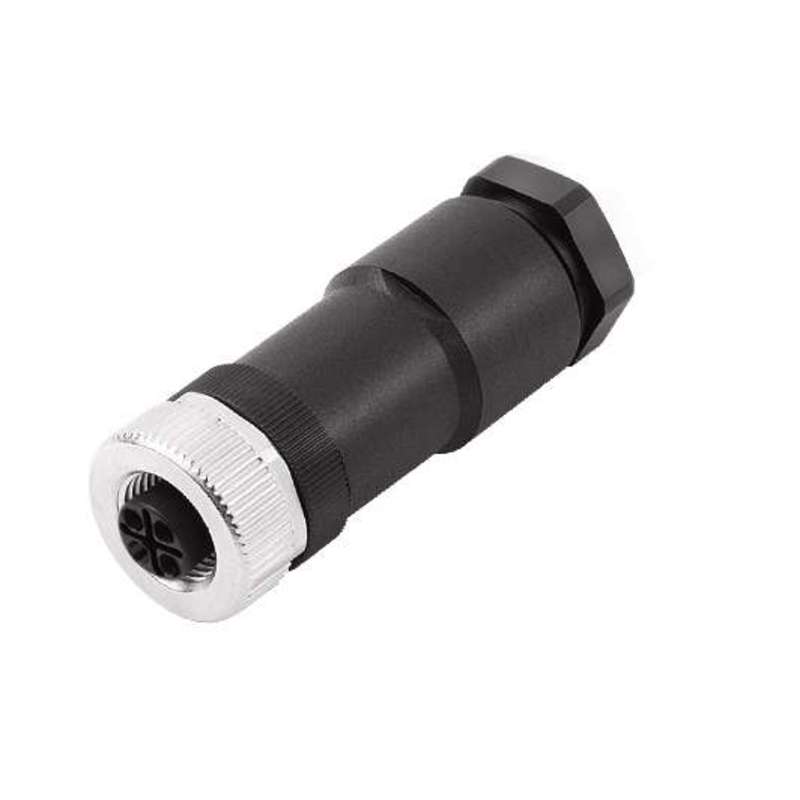

SAIB-3+PE/11-S-COD Złącze okrągłe (złącza przemysłowe), nr.katalogowy 1392000000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1392000000 |
| GTIN(EAN) | 4050118192360 |
| Price unit | piece |
| Catalog price | 133,64 zł (108,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Contact type: | Bus |
| Number of data contacts: | 4 |
| Number of power contacts: | 4 |
| Number of control contacts: | 4 |
| For cable outer diameter: | 8 - 10 mm |
| Type of housing: | Straight |
| Rated current In: | 12 A |
| Rated voltage: | 630 V |
| Pollution degree: | 3 |
| Connectable conductor cross section multi-wired: | 0.14 - 1.5 mm² |
| Type of electric connection: | Screw connection |
| Material of contact surface: | Gold |
| Housing material: | Plastic |
| Coating housing: | Plastic-coated |
| Material thread ring: | Zinc die-cast |
| Type of locking: | Gland nut |
| Degree of protection (IP), mounted: | IP67 |
| Screened: | no |
