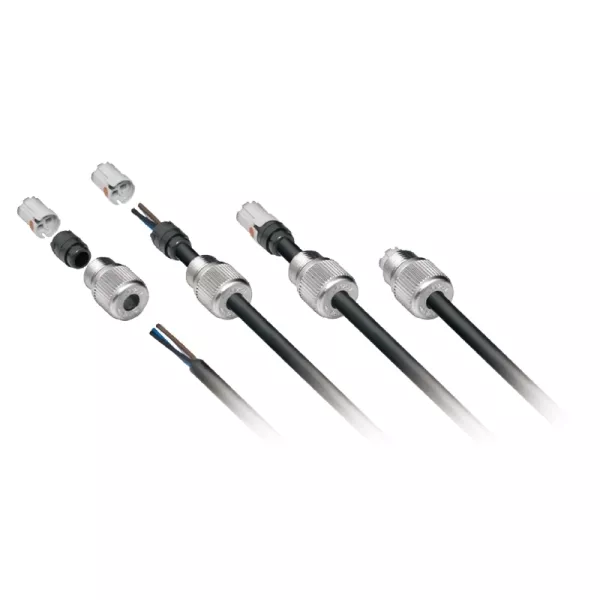

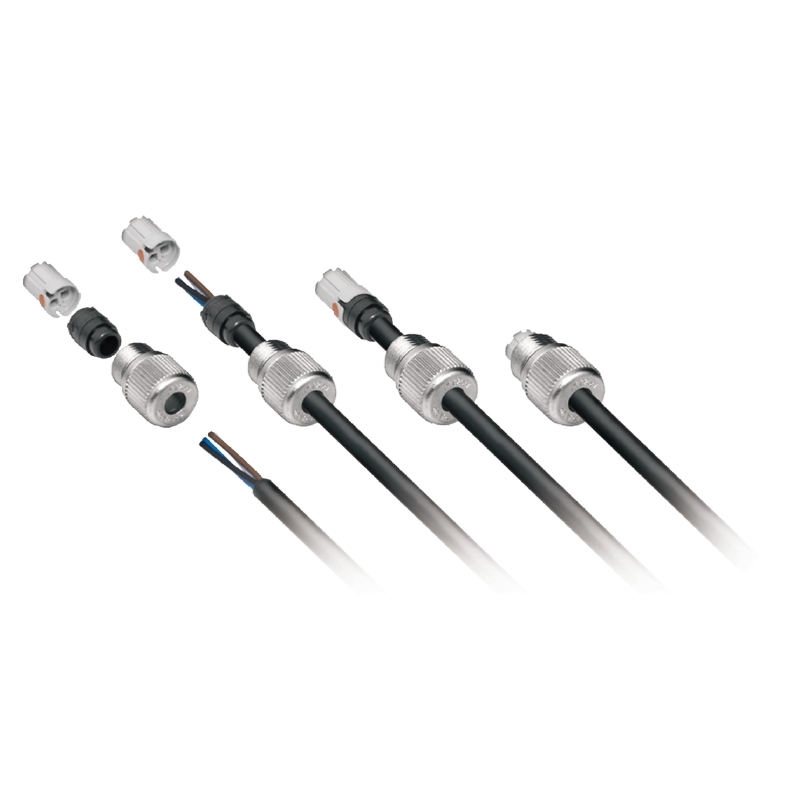

SAI-SA-4-IDC Złącze okrągłe (złącza przemysłowe), nr.katalogowy 1766810000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1766810000 |
GTIN(EAN) | 4032248148233 |
Price unit | piece |
Catalog price | 49,09 zł (39,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Okrągłe złącza do indywidualnego montażu przewodów. Kompaktowa konstrukcja.
Additional features:
Information | Value |
---|---|
ETIM class: | Circular connector for field assembly (industrial connector) |
Contact type: | Pin |
Number of data contacts: | 4 |
Number of power contacts: | 4 |
Number of control contacts: | 4 |
For cable outer diameter: | 4 - 5.1 mm |
Type of housing: | Straight |
Rated current In: | 4 A |
Rated voltage: | 32 V |
Pollution degree: | 3 |
Connectable conductor cross section multi-wired: | 0.25 - 0.5 mm² |
Type of electric connection: | Insulation displacement connection |
Material of contact surface: | Tin |
Housing material: | Brass |
Coating housing: | Other |
Material thread ring: | Zinc die-cast |
Type of locking: | Other |
Degree of protection (IP), mounted: | IP67 |
Screened: | no |
