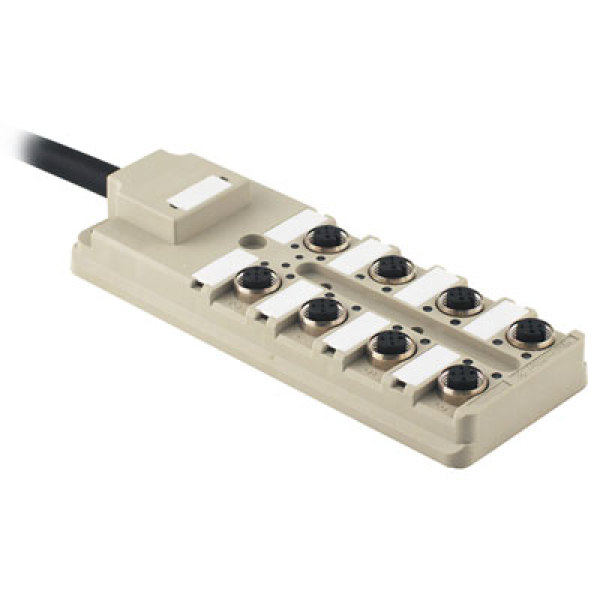

SAI-8-F 5P 10M 0.5/1.0U Pasywny rozdzielacz czujnik / człon wykonawczy (z przewodem), nr.katalogowy 9457600000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 9457600000 |
| GTIN(EAN) | 4032248169351 |
| Price unit | piece |
| Catalog price | 1 132,03 zł (920,35 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielacz do łączenia kilku sygnałów wejściowych na jednym centralnym kablu wyjściowym.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Passive sensor-actuator interface (with cable) |
| Length of the preassembled cable: | 10 m |
| Cable length configurable: | no |
| Number of sensor-/actuator-slots: | 8 |
| Number of channels per connector slot: | 5 |
| Type of branches for sensor-/actuator cables: | Other |
| Number of poles sensor/actuator slots: | 5 |
| Pollution degree: | 3 |
| Operating voltage: | 10 - 10 V |
| Max. current carrying capacity per I/O signal: | 4 A |
| Max. current carrying capacity per socket: | 4 A |
| Material contact body: | Other copper alloys |
| Material of contact surface: | Gold |
| Material insulation body: | Other |
| Thread sleeves sensor/actuator slots: | M12 |
| With LED indication: | yes |
| With potential separation: | no |
| Connection for NPN-sensors: | no |
| Fix cable version suitable for cable guide chain: | yes |
| Housing material: | Plastic |
| Housing colour: | Grey |
| Operating temperature: | -20 - 80 °C |
| Degree of protection (IP): | IP68 |
| Explosion safety category for gas: | None |
| Height: | 25 mm |
| Depth: | 152 mm |
