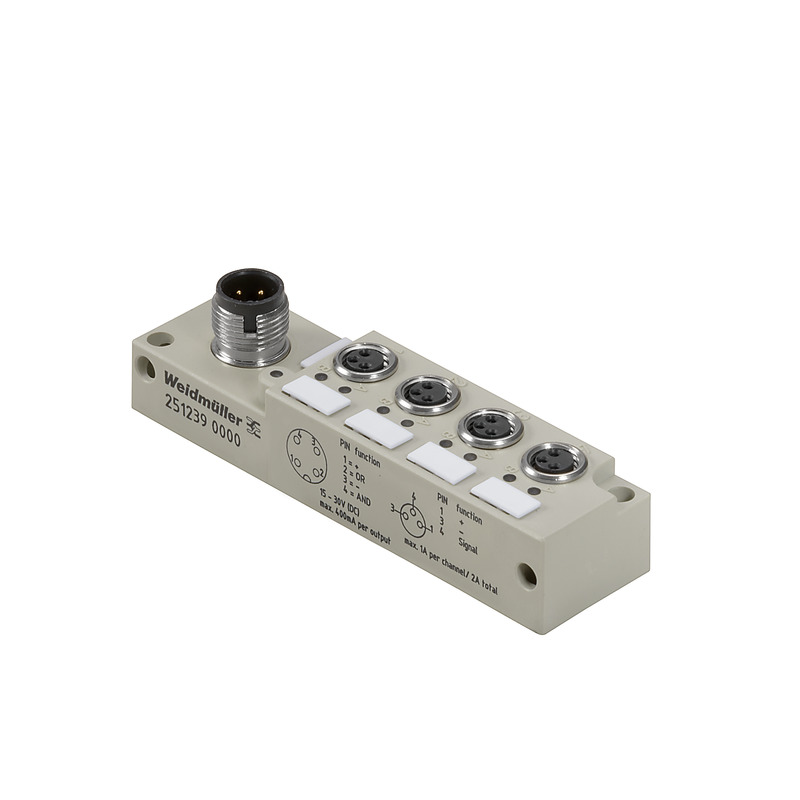

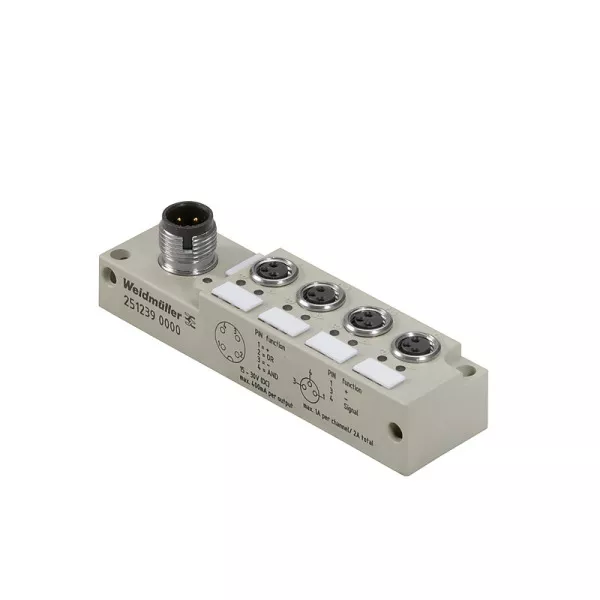

SAI-4-S-3P-M8L-M12-LOG Pasywny rozdzielacz czujnik / człon wykonawczy (bez okablowania), nr.katalogowy 2512390000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2512390000 |
| GTIN(EAN) | 4050118527773 |
| Price unit | piece |
| Catalog price | 868,70 zł (706,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielacz do łączenia kilku sygnałów wejściowych na jednym centralnym łącznikiem wtykowym.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Passive sensor-actuator interface (without cable) |
| Type of connector for trunk line: | M12 |
| Number of sensor-/actuator-slots: | 4 |
| Number of channels per connector slot: | 3 |
| Type of branches for sensor-/actuator cables: | M8 |
| Number of poles sensor/actuator slots: | 3 |
| Pollution degree: | 3 |
| Operating voltage: | 15 - 15 V |
| Material contact body: | Brass |
| Material of contact surface: | Gold |
| Material insulation body: | PBT |
| Thread sleeves sensor/actuator slots: | M8 |
| With LED indication: | yes |
| Connection for NPN-sensors: | no |
| Fix cable version suitable for cable guide chain: | no |
| Housing material: | Plastic |
| Housing colour: | Grey |
| Operating temperature: | -20 - 90 °C |
| Degree of protection (IP): | IP67 |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
