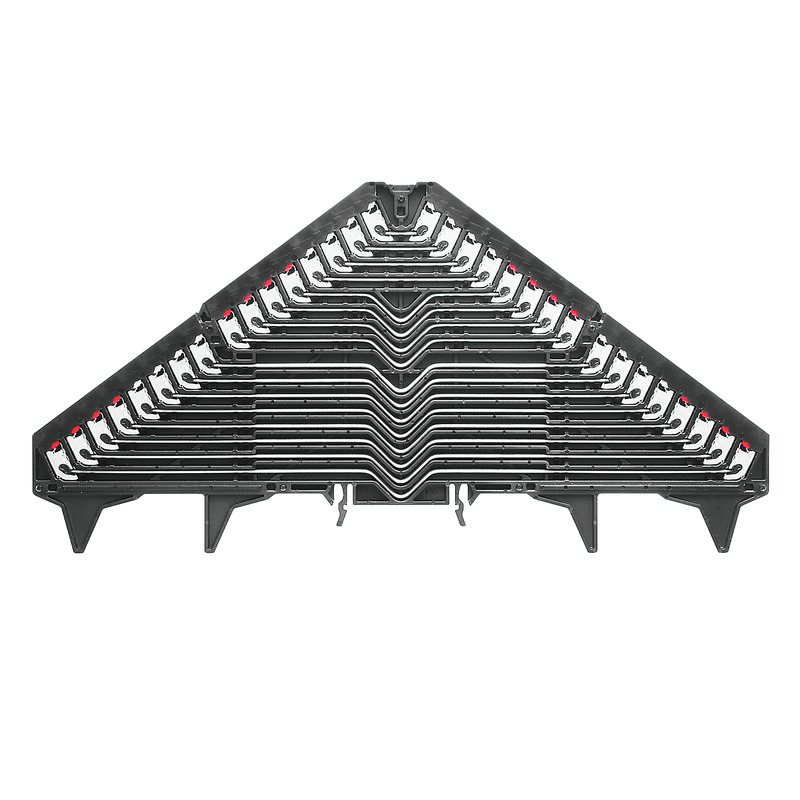

PRV 16 SW 35X15 WS/RT Złączka szynowa przelotowa, nr.katalogowy 1173650000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1173650000 |
| GTIN(EAN) | 4032248965908 |
| Price unit | piece |
| Catalog price | 204,68 zł (166,41 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Uniwersalne terminale modułowe do tworzenia połączeń na małej przestrzeni.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 1.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 1.5 mm² |
| Rated current In: | 6 A |
| Rated voltage: | 250 V |
| Type of electrical connection 1: | Plug-in connection |
| Connection position: | Inclined |
| Number of levels: | 16 |
| Number of clamp positions per level: | 4 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 9.2 mm |
| Length: | 225 mm |
| Closing plate required: | yes |
| Colour: | Black |
| Internally connected stages: | no |
