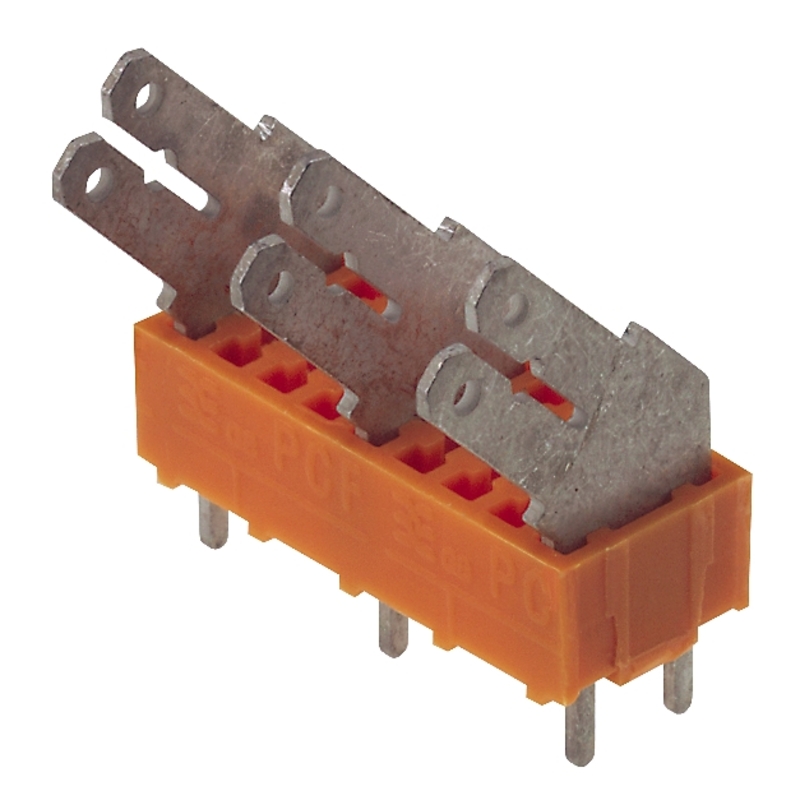

PCF 10.00/08/135 3.5SN OR BX Listwa zaciskowa do płytek drukowanych, nr.katalogowy 9512150000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 9512150000 |
| GTIN(EAN) | 4008190558307 |
| Price unit | piece |
| Catalog price | 13,64 zł (11,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków PCB (zadrukowany zacisk, płyta zacisków) służący łatwemu i bezpiecznemu przesyłowi danych bezpośrednio do PCB.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Printed circuit board terminal |
| Height: | 21.4 mm |
| Number of electrical connections: | 8 |
| Number of levels: | 1 |
| Modular spacing connections: | 10 mm |
| Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
| Rated current In: | 24 A |
| Rated voltage: | 690 V |
| Rated surge voltage: | 6 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Connection type conductor: | Flat plug-in connection |
| Connection type PCB: | Soldering connection |
| Length pin: | 3.5 mm |
| Material insulation body: | Polyamide (PA) |
| Housing colour: | Orange |
| Inflammability class of insulation material according to with UL94: | V2 |
| Operating temperature: | -50 - 100 °C |
| Type of PCB fastening: | Other |
| Type of fastening: | Solder |
| Type of banding: | Other |
| Degree of protection (IP), mounted: | IP00 |
