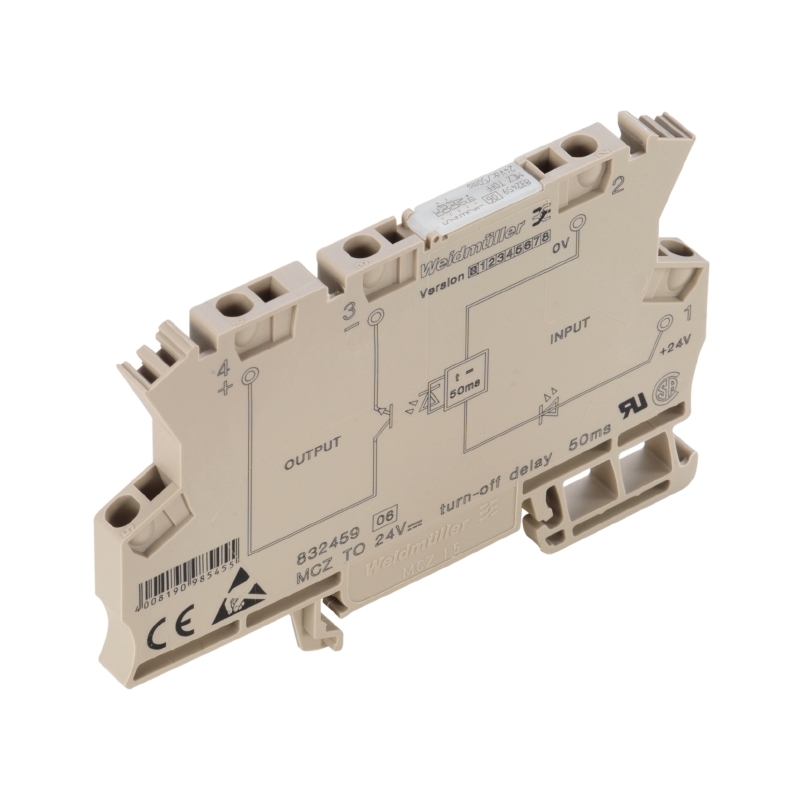

MCZ TO 24VDC/50MS Przekaźnik czasowy, nr.katalogowy 8324590000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 8324590000 |
| GTIN(EAN) | 4008190985455 |
| Price unit | piece |
| Catalog price | 261,26 zł (212,41 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy do przetwarzania sygnałów sterowania. Krótkie impulsy są wydłużane, co zwiększa niezawodność ich wykrywania przez dalsze moduły sterowania.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Timer relay |
| Type of electric connection: | Spring clamp connection |
| Function delay-on energization: | no |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | no |
| Function floating contact on de-energization: | no |
| Function star-delta: | no |
| Function pulse shaping: | no |
| Function flashing, starting with pause, fixed time: | no |
| Function flashing, starting with pulse, fixed time: | no |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| With plug-in socket: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage DC: | 21.6 - 26.4 V |
| Time range: | 0.05 - 0.05 s |
| Number of outputs, delayed, normally open contact: | 1 |
| Outputs, reversible delayed/undelayed: | no |
| With semiconductor output: | yes |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| Suitable for front mounting: | no |
| Width: | 6.1 mm |
| Height: | 91 mm |
| Depth: | 63.2 mm |
