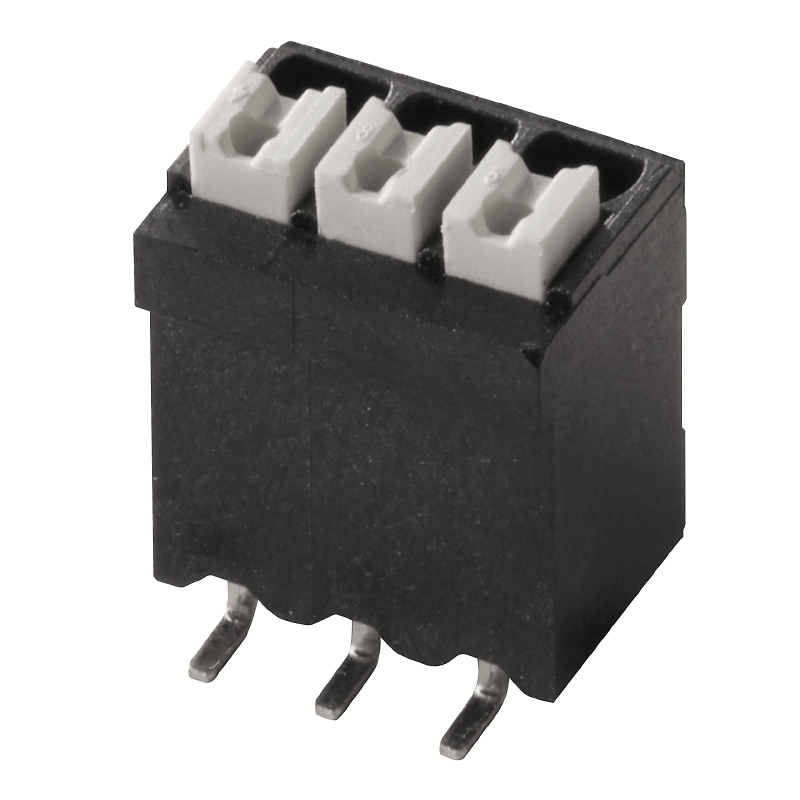

LSF-SMD 3.50/04/180 SN BK RL Listwa zaciskowa do płytek drukowanych, nr.katalogowy 1250380000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1250380000 |
GTIN(EAN) | 4050118041187 |
Price unit | piece |
Catalog price | 8,54 zł (6,94 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków PCB (zadrukowany zacisk, płyta zacisków) służący łatwemu i bezpiecznemu przesyłowi danych bezpośrednio do PCB.
Additional features:
Information | Value |
---|---|
ETIM class: | Printed circuit board terminal |
Height: | 16.3 mm |
Number of electrical connections: | 4 |
Number of levels: | 1 |
Modular spacing connections: | 3.5 mm |
Angle PCB/conductor connection: | 90° (upwards vertical) |
Rated current In: | 17.5 A |
Rated voltage: | 160 V |
Rated surge voltage: | 2.5 kV |
Over voltage category: | II |
Pollution degree: | 2 |
Connection type conductor: | Push-in clamp connection |
Connectable conductor cross section solid-core: | 0.2 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 1.5 mm² |
Connection type PCB: | SMD-connection |
Material insulation body: | Liquid crystal polymer |
Housing colour: | Black |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 120 °C |
Type of PCB fastening: | Other |
Type of fastening: | Solder |
Type of banding: | Other |
Degree of protection (IP), mounted: | IP20 |
