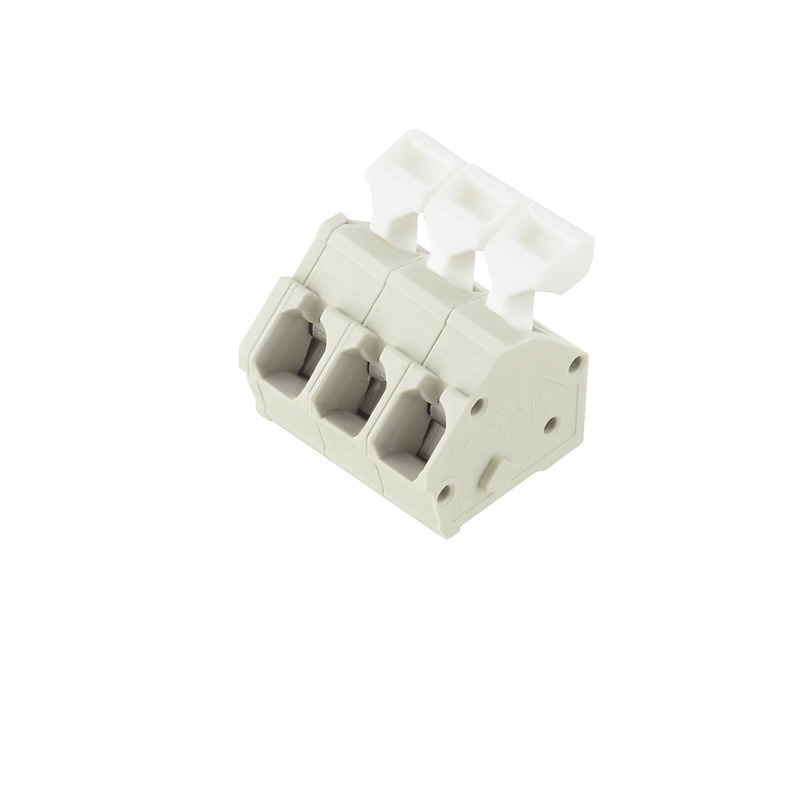

LMZFL 5/2/135 3.5GR Listwa zaciskowa do płytek drukowanych, nr.katalogowy 1811620000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1811620000 |
GTIN(EAN) | 4032248290727 |
Price unit | piece |
Catalog price | 1,82 zł (1,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków PCB (zadrukowany zacisk, płyta zacisków) służący łatwemu i bezpiecznemu przesyłowi danych bezpośrednio do PCB.
Additional features:
Information | Value |
---|---|
ETIM class: | Printed circuit board terminal |
Height: | 20.24 mm |
Number of electrical connections: | 2 |
Number of levels: | 1 |
Modular spacing connections: | 5 mm |
Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
Rated current In: | 24 A |
Rated voltage: | 320 V |
Rated surge voltage: | 4 kV |
Over voltage category: | II |
Pollution degree: | 2 |
Connection type conductor: | Spring clamp connection |
Connectable conductor cross section solid-core: | 0.13 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.13 - 2.5 mm² |
Connection type PCB: | Soldering connection |
Length pin: | 3.5 mm |
Material insulation body: | Polyamide (PA) |
Housing colour: | Grey |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 120 °C |
Type of PCB fastening: | Other |
Type of fastening: | Solder |
Type of banding: | Other |
Degree of protection (IP), mounted: | IP20 |
