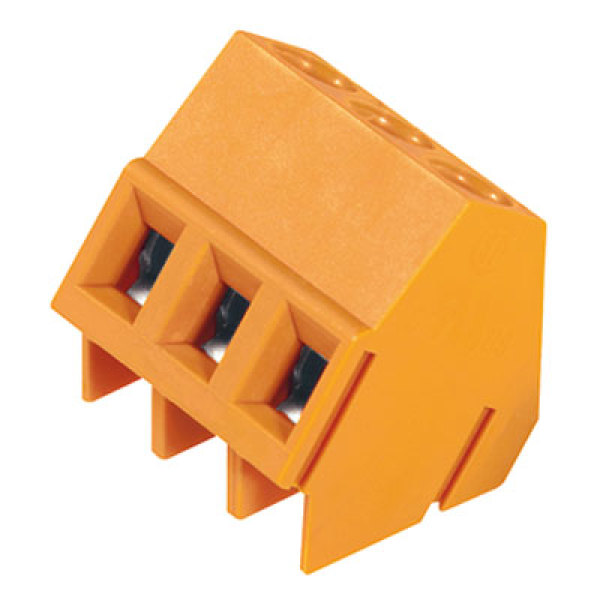

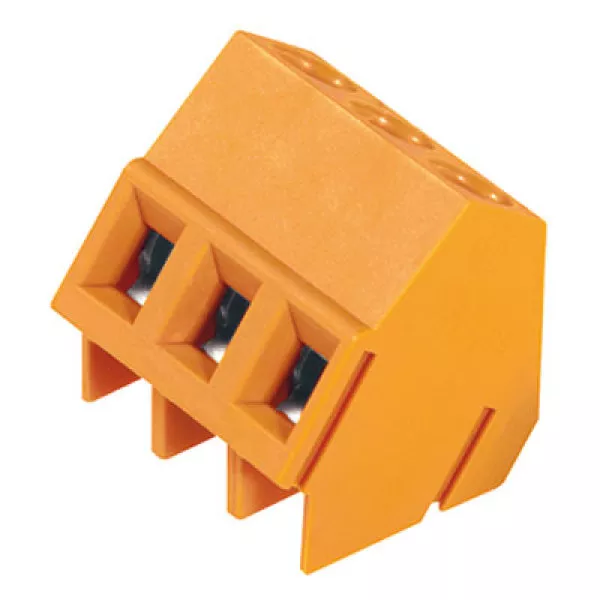

LM 5.00/02/135 3.5SN OR BX Listwa zaciskowa do płytek drukowanych, nr.katalogowy 1715350000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1715350000 |
| GTIN(EAN) | 4008190365233 |
| Price unit | piece |
| Catalog price | 2,18 zł (1,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków PCB (zadrukowany zacisk, płyta zacisków) służący łatwemu i bezpiecznemu przesyłowi danych bezpośrednio do PCB.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Printed circuit board terminal |
| Height: | 19 mm |
| Number of electrical connections: | 2 |
| Number of levels: | 1 |
| Modular spacing connections: | 5 mm |
| Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
| Rated current In: | 17.5 A |
| Rated voltage: | 320 V |
| Rated surge voltage: | 4 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Connection type conductor: | Screw connection |
| Connectable conductor cross section solid-core: | 0.2 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 2.5 mm² |
| Connection type PCB: | Soldering connection |
| Material connection surface: | Nickel |
| Length pin: | 3.5 mm |
| Material insulation body: | Polyamide (PA) |
| Housing colour: | Orange |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -50 - 120 °C |
| Type of PCB fastening: | Other |
| Type of fastening: | Solder |
| Type of banding: | Other |
| Degree of protection (IP), mounted: | IP20 |
