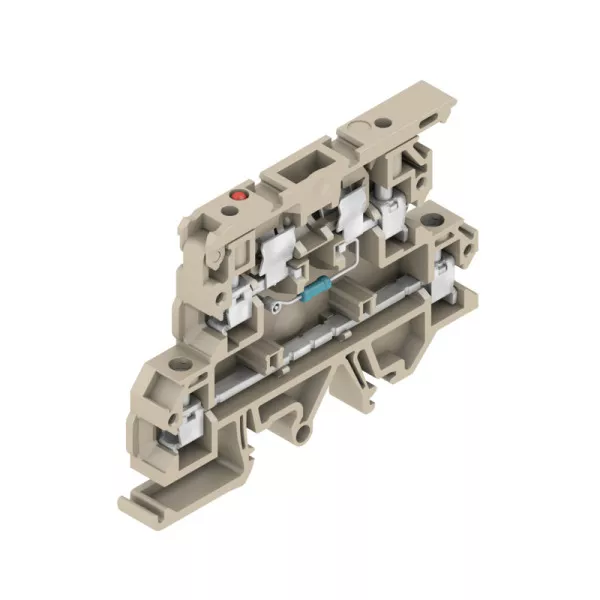

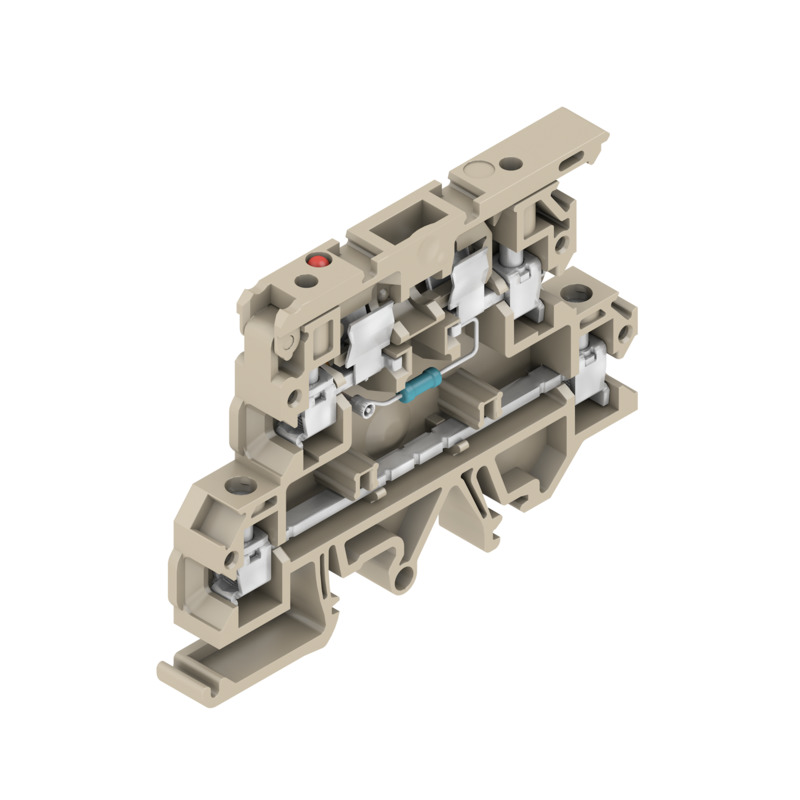

KDKS 1EN/LLC 100-250V AC/DC Złączka szynowa z bezpiecznikiem, nr.katalogowy 9915820001
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 9915820001 |
| GTIN(EAN) | 4050118175349 |
| Price unit | piece |
| Catalog price | 43,74 zł (35,56 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Z wyciąganym nośnikiem na bezpiecznik.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Type of fuse insert: | G-fuse 5x20 mm |
| Type of indication element for defect indication: | LED |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
| Rated current In: | 6.3 A |
| Rated voltage: | 250 V |
| Type of electrical connection 1: | Screw connection |
| Number of levels: | 2 |
| Connection position: | Sideways |
| Mounting method: | G-rail |
| Material insulation body: | Thermoplastic |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 8 mm |
| Length: | 76.5 mm |
| Closing plate required: | yes |
| Colour: | Beige |
