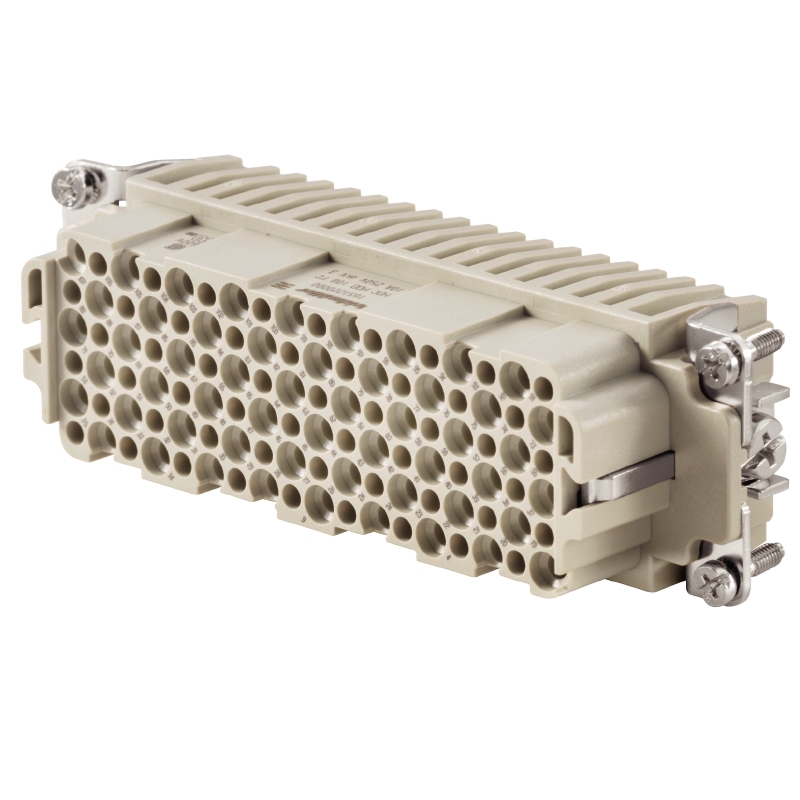

HDC HDD 108 FC Wkład do złączy prostokątnych, nr.katalogowy 1651220000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1651220000 |
| GTIN(EAN) | 4008190299828 |
| Price unit | piece |
| Catalog price | 83,16 zł (67,61 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wkładka dla wtykowych łączników przemysłowych, skłądająca się z elementu stycznego i izolacji.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Contact insert for rectangular connectors |
| Contact type: | Bus |
| Number of poles: | 108 |
| Material connector insert: | Thermoplastic |
| Rated current In: | 10 A |
| Rated voltage: | 250 V |
| Rated surge voltage: | 4 kV |
| Pollution degree: | 3 |
| Type of electric connection: | Crimp connection |
| With wire protection: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.14 - 2.5 mm² |
| Material of contact insert: | Thermoplastic |
| Inflammability class of insulation material according to with UL94: | V0 |
| With protective conductor: | yes |
| Width: | 34 mm |
| Height: | 33 mm |
| Depth: | 111 mm |
