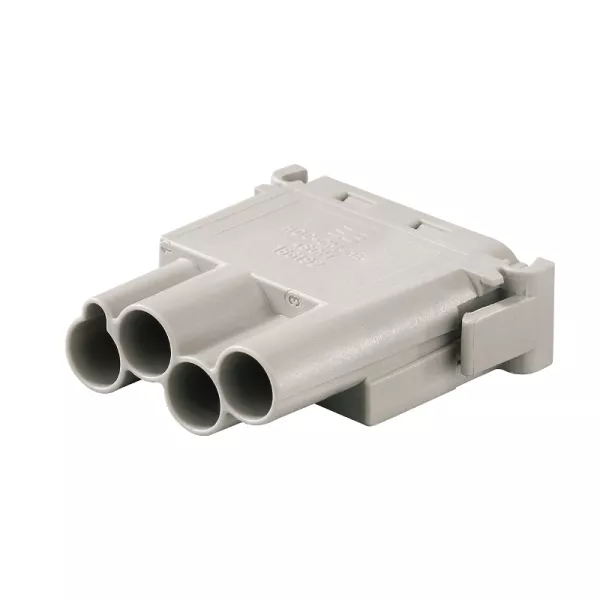

HDC CM HE 4 MC Wkład do złączy prostokątnych, nr.katalogowy 1861920000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1861920000 |
| GTIN(EAN) | 4032248425068 |
| Price unit | piece |
| Catalog price | 17,50 zł (14,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wkładka dla wtykowych łączników przemysłowych, skłądająca się z elementu stycznego i izolacji.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Contact insert for rectangular connectors |
| Contact type: | Pin |
| Number of poles: | 4 |
| Diameter plug-in contact: | 2.5 mm |
| Material connector insert: | Thermoplastic |
| Rated current In: | 25 A |
| Rated voltage: | 630 V |
| Rated surge voltage: | 8 kV |
| Over voltage category: | III |
| Pollution degree: | 3 |
| Type of electric connection: | Crimp connection |
| With wire protection: | no |
| Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
| Material of contact insert: | Thermoplastic |
| Material contact: | Other |
| Inflammability class of insulation material according to with UL94: | V0 |
| With protective conductor: | yes |
| Width: | 11.4 mm |
| Height: | 39.5 mm |
| Depth: | 34 mm |
