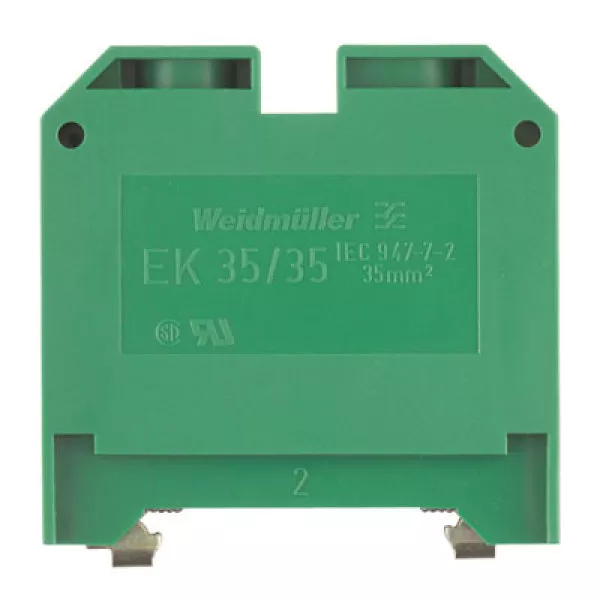

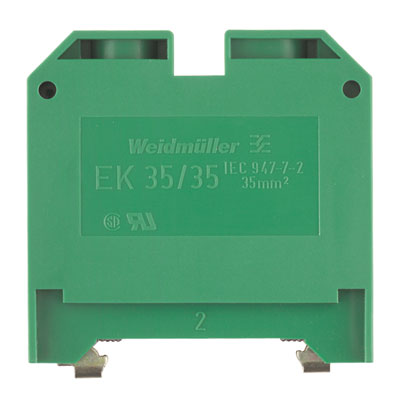

EK 35/35 Złączka szynowa ochronna, nr.katalogowy 0661460000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 0661460000 |
| GTIN(EAN) | 4008190147600 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 10,28 zł / szt. (8,36 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący podłączeniu przewodów uziemienia do podstawy montażowej (ziemi). Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Ground terminal block |
| PEN function possible: | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 10 - 35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 10 - 35 mm² |
| Connectable conductor cross section solid-core: | 6 - 16 mm² |
| Connectable conductor cross section multi-wired: | 16 - 50 mm² |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 100 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 16 mm |
| Length: | 60 mm |
| Closing plate required: | no |
| Colour: | Other |
