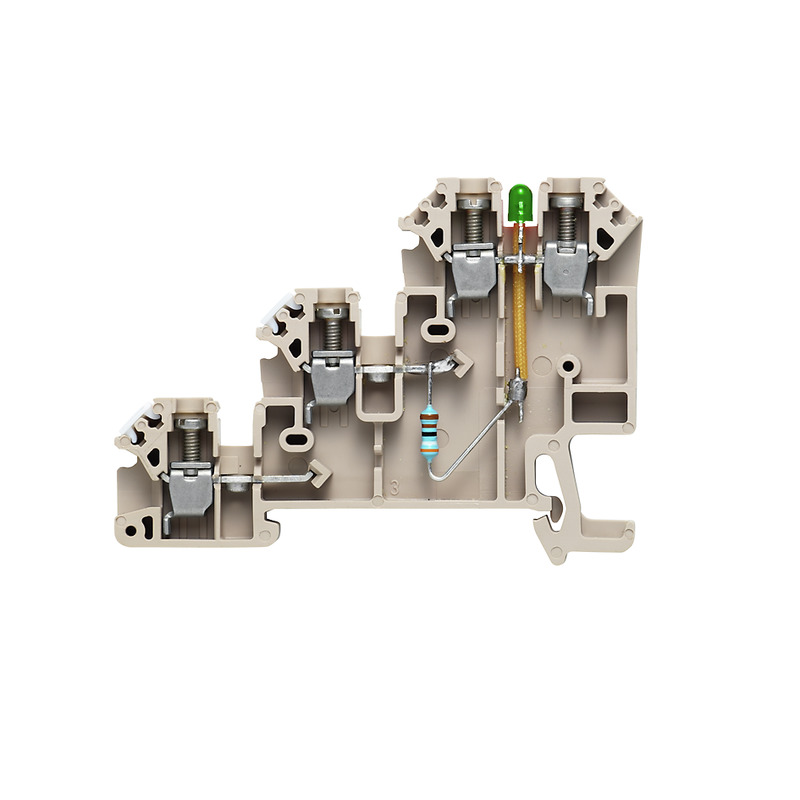

DLI 2.5/LD-GN/PNP +- DB Złączka szynowa inicjatora / członu wykonawczego, nr.katalogowy 1783970000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1783970000 |
| GTIN(EAN) | 4032248212606 |
| Price unit | piece |
| Catalog price | 35,50 zł (28,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Terminal wyzwalacza/siłownika do łączenia przewodów, rdzeni i kabli z zastosowaniem wytrzymałego i bezpiecznego styku.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Sensor/actuator terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
| Rated current In: | 24 A |
| Rated voltage: | 30 V |
| Number of levels: | 3 |
| Number of clamp positions per level: | 1 |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 120 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 6.1 mm |
| Length: | 48.5 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | yes |
| Colour: | Beige |
| Colour light source: | Green |
| With PE connection: | no |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:23:21 |
| Files to download: | |
| External links: |
