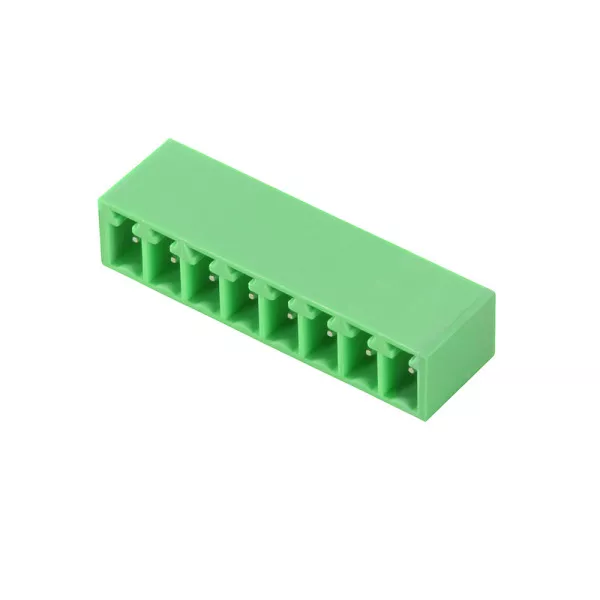

CH 3.81/16/90G 3.5SN GN BX Złącze wtykowe płytek drukowanych, nr.katalogowy 2643560000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2643560000 |
| GTIN(EAN) | 4050118643411 |
| Price unit | piece |
| Catalog price | 17,28 zł (14,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Printed circuit board connector |
| Type of connection: | Flexible PCB-connector |
| Connector model: | Fixed connector |
| Contact type: | Pin |
| Number of poles: | 16 |
| Number of plug-in contact rows: | 1 |
| Modular spacing contacts: | 3.81 mm |
| Modular spacing connections: | 3.81 mm |
| Rated voltage: | 160 V |
| Rated surge voltage: | 2.5 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Material of contact surface: | Tin |
| Type of electric connection: | THR connection |
| Length pin: | 3.5 mm |
| Material insulation body: | Polyamide (PA) |
| Housing colour: | Green |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -40 - 105 °C |
| Type of fastening: | Solder |
| Type of banding: | Other |
