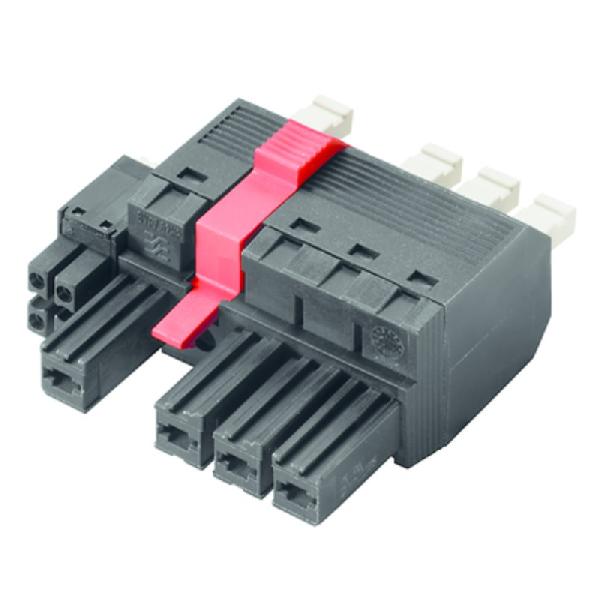

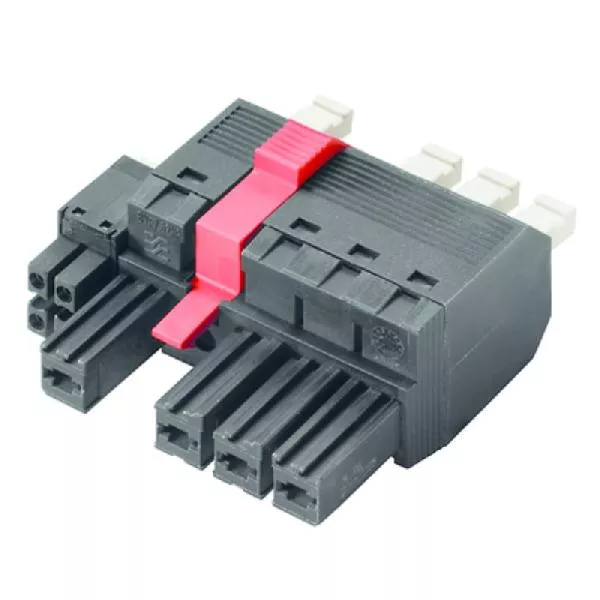

BVFL 7.62HP/04/180MF4 BCF/04R SN BK BX Złącze kablowe do płytek drukowanych, nr.katalogowy 1547590000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1547590000 |
| GTIN(EAN) | 4050118353402 |
| Price unit | piece |
| Catalog price | 62,24 zł (50,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wtyczka płytki drukowanej, kołnierz środkowy, 7.62 mm, Liczba biegunów: 4, cynowana, czarny, skrzynia
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Cable connector |
| Type of connection: | Printed circuit board to cable |
| Connector model: | Free connector |
| Contact type: | Bus |
| Number of poles: | 4 |
| Number of plug-in contact rows: | 1 |
| Modular spacing contacts: | 7.62 mm |
| Modular spacing connections: | 7.62 mm |
| Rated current In: | 38 A |
| Rated voltage: | 1000 V |
| Rated surge voltage: | 6 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Material of contact surface: | Tin |
| Type of electric connection: | Press-in connection |
| Material insulation body: | Polyamide (PA) |
| Housing colour: | Black |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -50 - 125 °C |
| Type of PCB fastening: | Flange |
| Type of banding: | Other |
