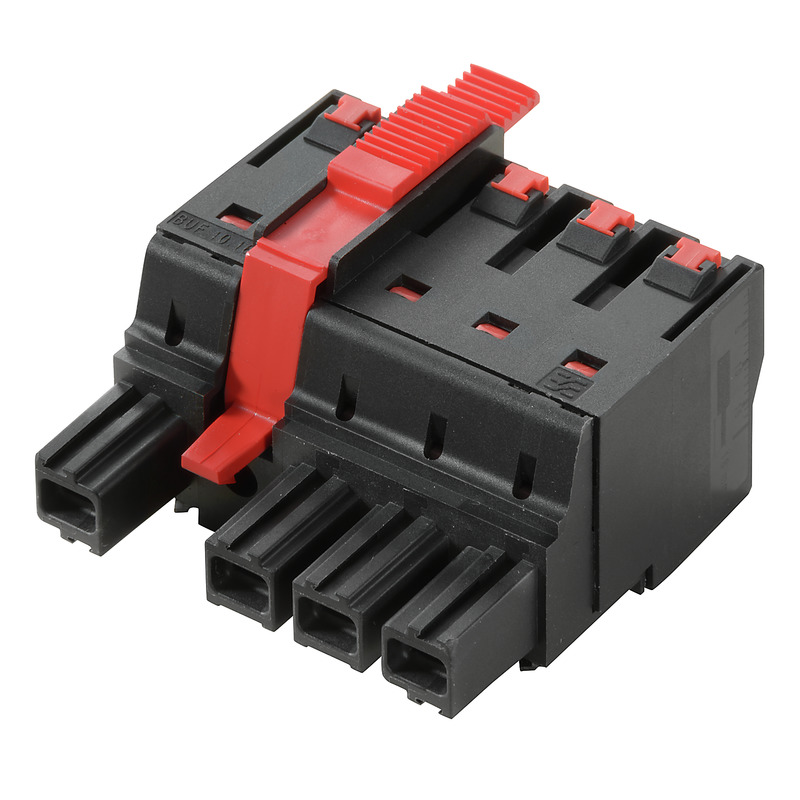

BUF 10.16IT/04/180MF4 AG BK BX Złącze kablowe do płytek drukowanych, nr.katalogowy 2544950000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2544950000 |
| GTIN(EAN) | 4050118555011 |
| Price unit | piece |
| Catalog price | 55,87 zł (45,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Cable connector |
| Type of connection: | Flexible PCB-connector |
| Contact type: | Bus |
| Number of poles: | 4 |
| Number of plug-in contact rows: | 1 |
| Modular spacing contacts: | 10.16 mm |
| Modular spacing connections: | 10.16 mm |
| Angle contact/conductor connection: | 180° (horizontal) |
| Rated current In: | 70 A |
| Rated voltage: | 1000 V |
| Rated surge voltage: | 8 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 16 mm² |
| Connectable conductor cross section solid-core: | 2.5 - 10 mm² |
| Connectable conductor cross section multi-wired: | 10 - 16 mm² |
| Type of electric connection: | Push-in clamp connection |
| Material contact: | Other copper alloys |
| Material insulation body: | Polyamide (PA) |
| Housing material: | Plastic |
| Coating housing: | Other |
| Housing colour: | Black |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -50 - 120 °C |
| Degree of protection (IP), mounted: | IP20 |
