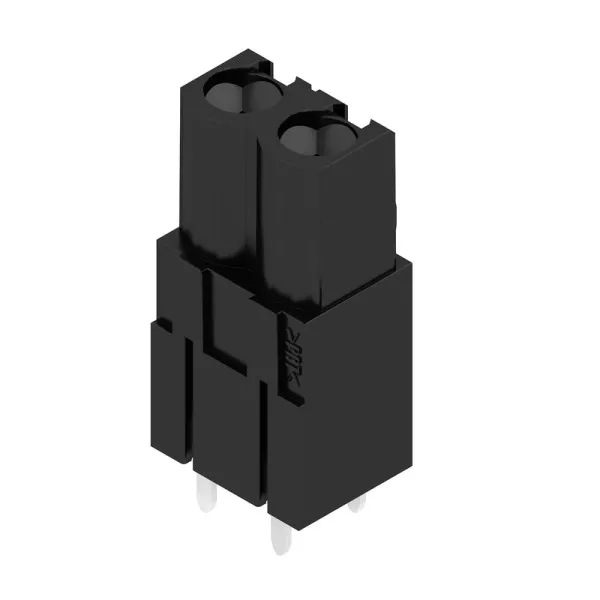

BLL 5.08/02/180 3.2 SN BK BX Złącze wtykowe płytek drukowanych, nr.katalogowy 1009470000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1009470000 |
GTIN(EAN) | 4032248713912 |
Price unit | piece |
Catalog price | 3,95 zł (3,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
Information | Value |
---|---|
ETIM class: | Printed circuit board connector |
Type of connection: | Flexible PCB-connector |
Connector model: | Fixed connector |
Contact type: | Bus |
Number of poles: | 2 |
Number of plug-in contact rows: | 1 |
Modular spacing contacts: | 5.08 mm |
Modular spacing connections: | 5.08 mm |
Rated current In: | 20 A |
Rated voltage: | 320 V |
Rated surge voltage: | 4 kV |
Over voltage category: | II |
Pollution degree: | 2 |
Type of electric connection: | THR connection |
Length pin: | 3.2 mm |
Material insulation body: | Thermoplastic |
Housing colour: | Black |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 100 °C |
Type of fastening: | Solder |
Type of banding: | Other |
