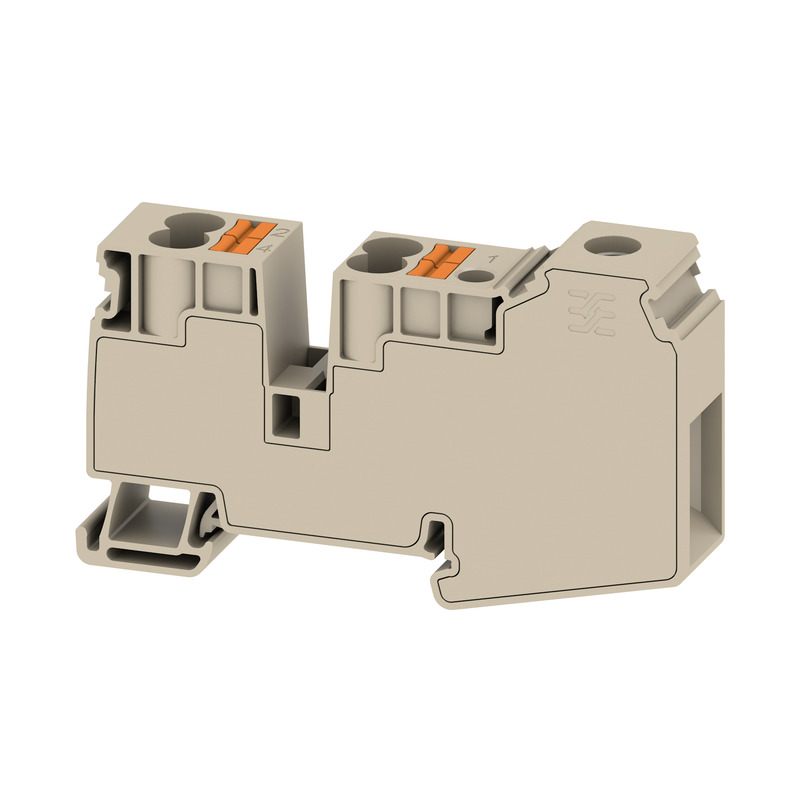

AWPD 35 4X10 Złączka szynowa przelotowa, nr.katalogowy 2728630000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 2728630000 |
| GTIN(EAN) | 4050118801118 |
| Price unit | piece |
| Catalog price | 75,30 zł (61,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków służący do rozdziału potencjałów. Ze stykiem o wysokiej gęstości.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 35 mm² |
| Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
| Rated current In: | 110 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Atop |
| Number of levels: | 1 |
| Number of clamp positions per level: | 5 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 16.2 mm |
| Length: | 95 mm |
| Closing plate required: | no |
| Colour: | Beige |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2023-03-02 12:29:04 |
| Files to download: | |
| External links: |
