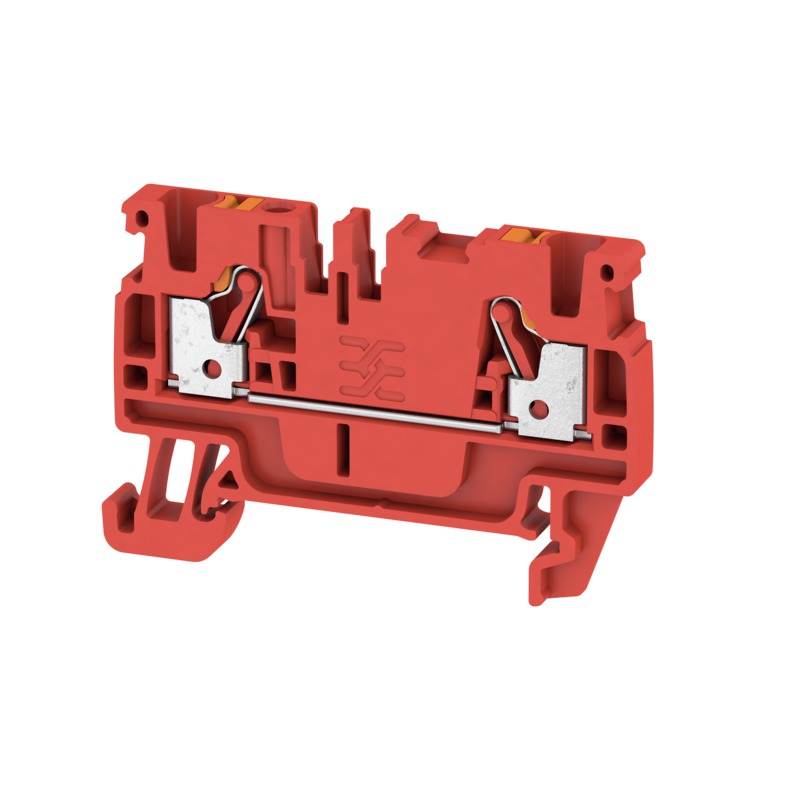

A2C 2.5 RD Złączka szynowa przelotowa, nr.katalogowy 1521900000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1521900000 |
| GTIN(EAN) | 4050118328332 |
| Price unit | piece |
| Catalog price | 5,93 zł (4,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
| Rated current In: | 24 A |
| Rated voltage: | 800 V |
| Type of electrical connection 1: | Plug-in connection |
| Connection position: | Atop |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 5.1 mm |
| Length: | 55 mm |
| Closing plate required: | yes |
| Colour: | Red |
