Złączka trzypiętrowa złączka PE/przelotowa/przelotowa, szara 2002-3217
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2002-3217 |
GTIN(EAN) | 4044918691208 |
Price unit | piece |
Catalog price | 36,54 zł (29,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

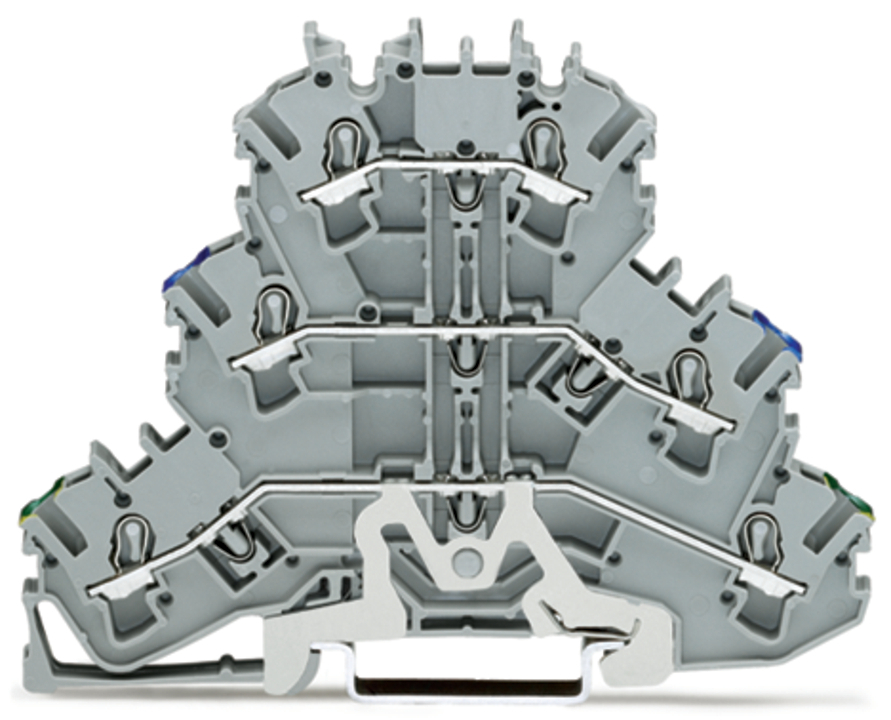

złączka 3-piętrowa; złączka PE/przelotowa/przelotowa; 2,5 mm²; PE/N/L; do zastosowań Ex e II; bez podstawki oznacznika; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 19,67 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
PEN function possible: | yes |
Height: | 93.3 mm |
Number of levels: | 3 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Other |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Depth: | 69.5 mm |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:03:13 |
Files to download: | |
External links: |
