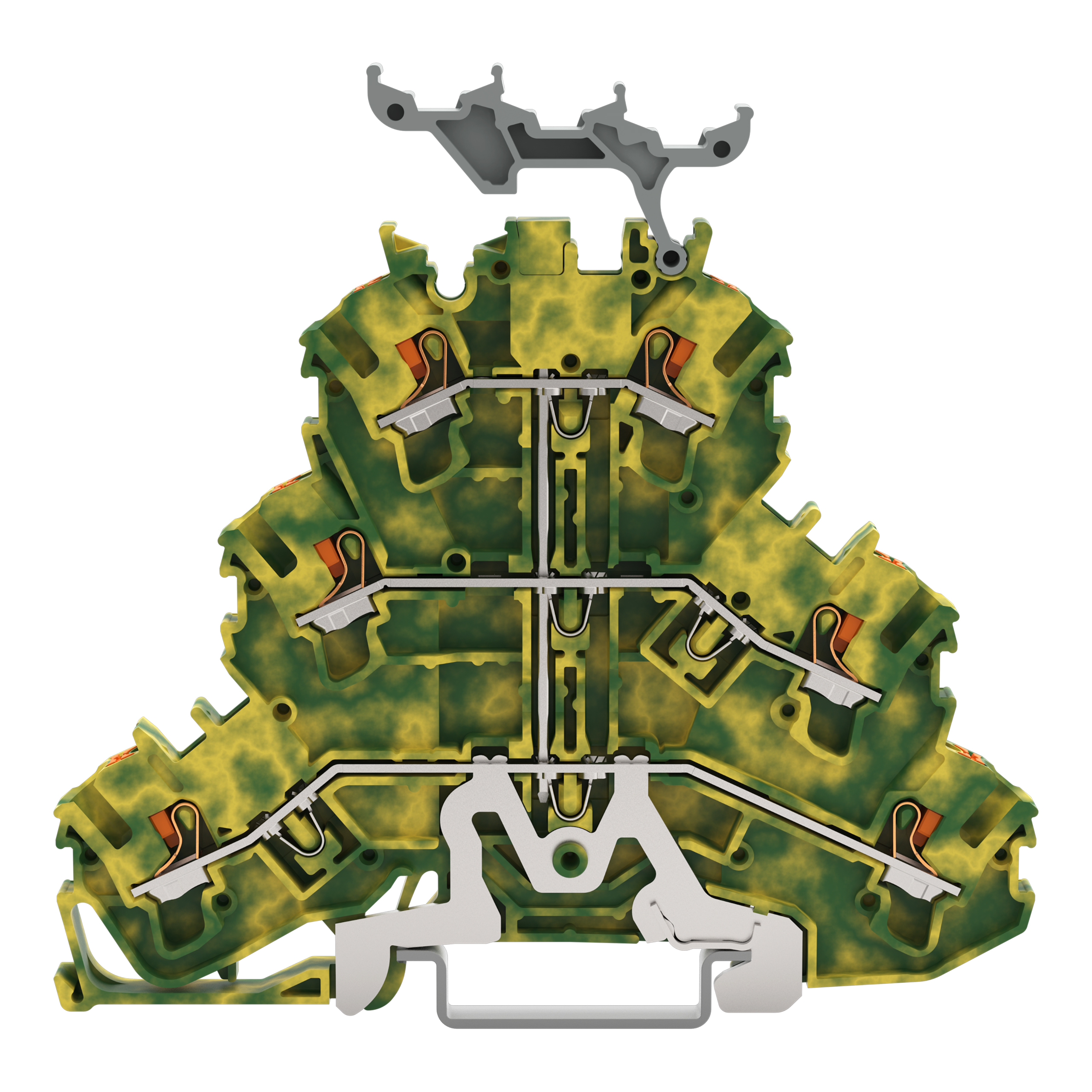

Złączka trzypiętrowa 6-przewodowa złączka PE, żółto-zielony 2202-3237
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2202-3237 |
GTIN(EAN) | 4066966194074 |
Price unit | piece |
Catalog price | 51,08 zł (41,53 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka 3-piętrowa; złączka PE 6-przewodowa; 2,5 mm²; PE; do zastosowań Ex e II; z podstawką oznacznika; z mostkowaniem wewnętrznym; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 2,50 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 21,79 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 93.6 mm |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
PEN function possible: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 3 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 5.2 mm |
Depth: | 83.8 mm |
