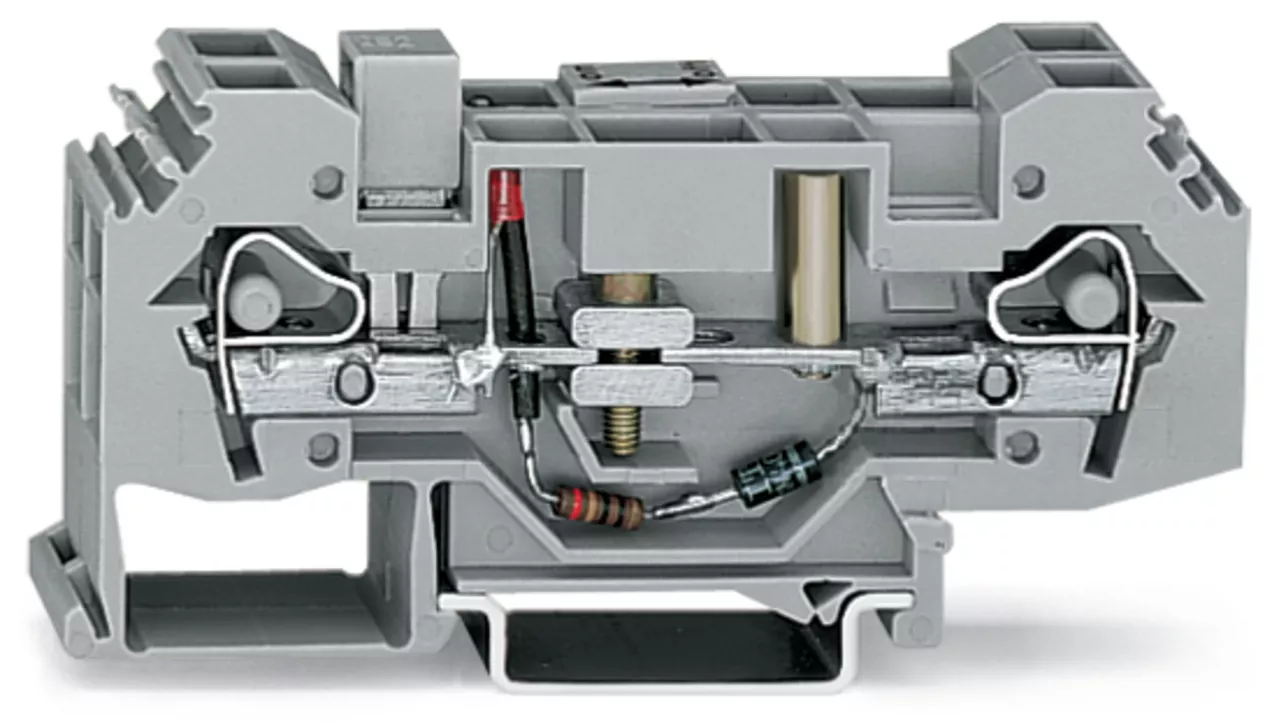

Złączka rozłączalna do kontroli doziemie szara 282-139
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 282-139 |
GTIN(EAN) | 4045454448509 |
Price unit | piece |
Catalog price | 218,69 zł (177,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka rozłączalna do kontroli doziemień; 230 V; 6 mm²; CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 44,96 g |
ETIM class: | (Knife) disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Height: | 87.5 mm |
Material insulation body: | Thermoplastic |
Connectable conductor cross section solid-core: | 0.2 - 6 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 4 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Type of slitting: | None |
Inflammability class of insulation material according to with UL94: | V0 |
Type of cross disconnection: | None |
With integrated test socket: | no |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 6 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 6 mm² |
Number of clamp positions per level: | 4 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 16 mm |
Depth: | 38.5 mm |
