Złączka przelotowa Mini 2-przewodowa z przyciskami 1mm², pomarańczowy 2250-312
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2250-312 |
GTIN(EAN) | 4066966309584 |
Price unit | piece |
Catalog price | 5,36 zł (4,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:

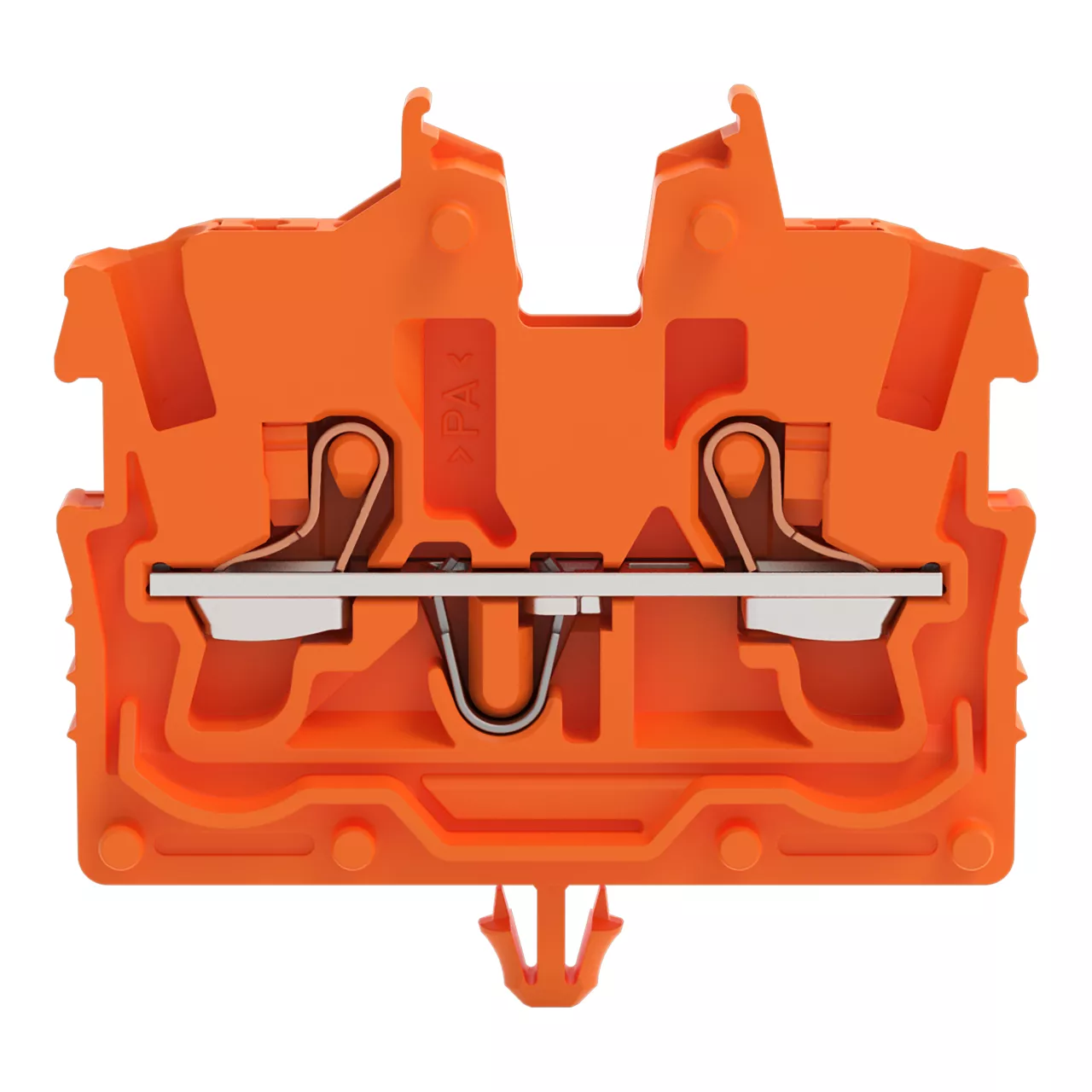

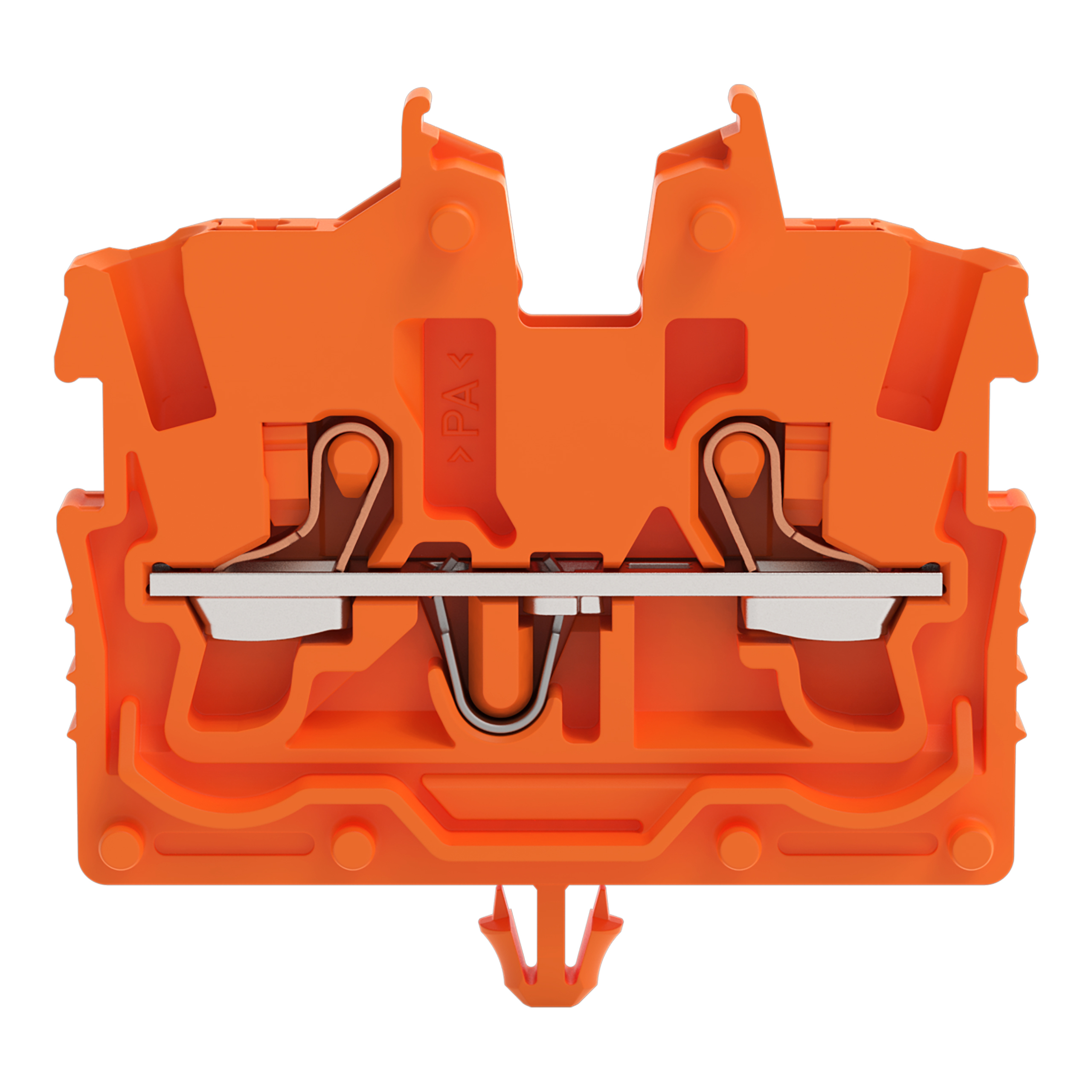

złączka przelotowa Mini 2-przewodowa; z przyciskami; 1 mm²; ze stopką zatrzaskową; opis z boku i na środku; z otworem pomiarowym; Push-in CAGE CLAMP®; 1,00 mm²; pomarańczowy
Additional features:
Information | Value |
---|---|
Net weight: | 2,38 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 2 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 33.2 mm |
Connectable conductor cross section solid-core: | 0.14 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 13.5 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Number of poles: | 1 |
Transparent: | no |
Explosion-tested version 'Ex e': | yes |
Colour: | Grey |
Width: | 3.5 mm |
Rated voltage: | 500 V |
Depth: | 27.2 mm |
