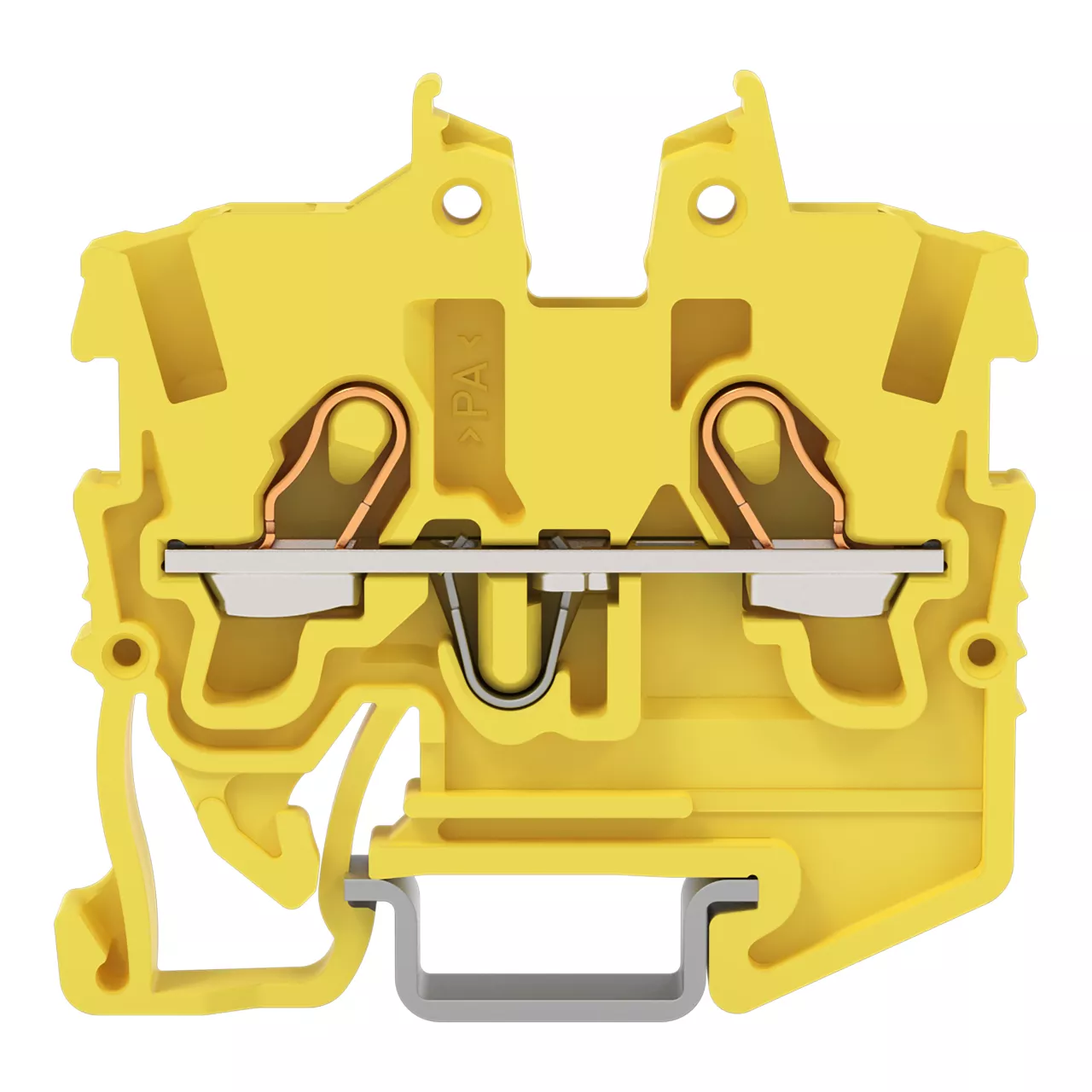

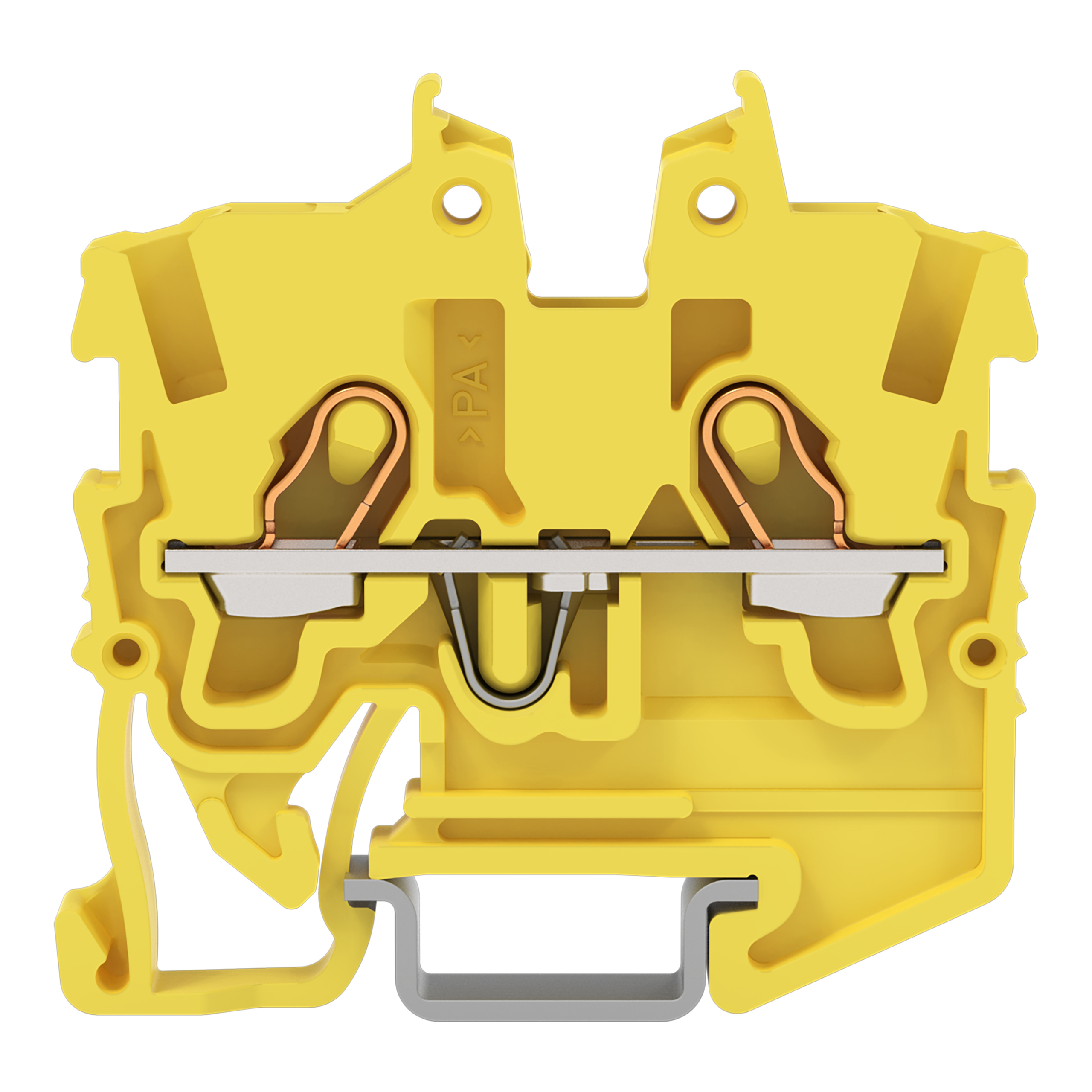

Złączka przelotowa Mini 2-przewodowa z otworem montażowym 1mm², żółty 2050-1206
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2050-1206 |
| GTIN(EAN) | 4066966312737 |
| Price unit | piece |
| Catalog price | 5,36 zł (4,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złączka przelotowa Mini 2-przewodowa; z otworem montażowym; 1 mm²; z otworem pomiarowym; opis z boku i na środku; na szynę 15; Push-in CAGE CLAMP®; 1,00 mm²; żółty
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,42 g |
| ETIM class: | Feed-through terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 34.1 mm |
| Connectable conductor cross section solid-core: | 0.14 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
| Mounting method: | DIN rail (top hat rail) 15 mm |
| Rated current In: | 13.5 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
| Number of levels: | 1 |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
| Explosion-tested version 'Ex e': | yes |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Grey |
| Width: | 3.5 mm |
| Rated voltage: | 500 V |
| Depth: | 27.9 mm |
