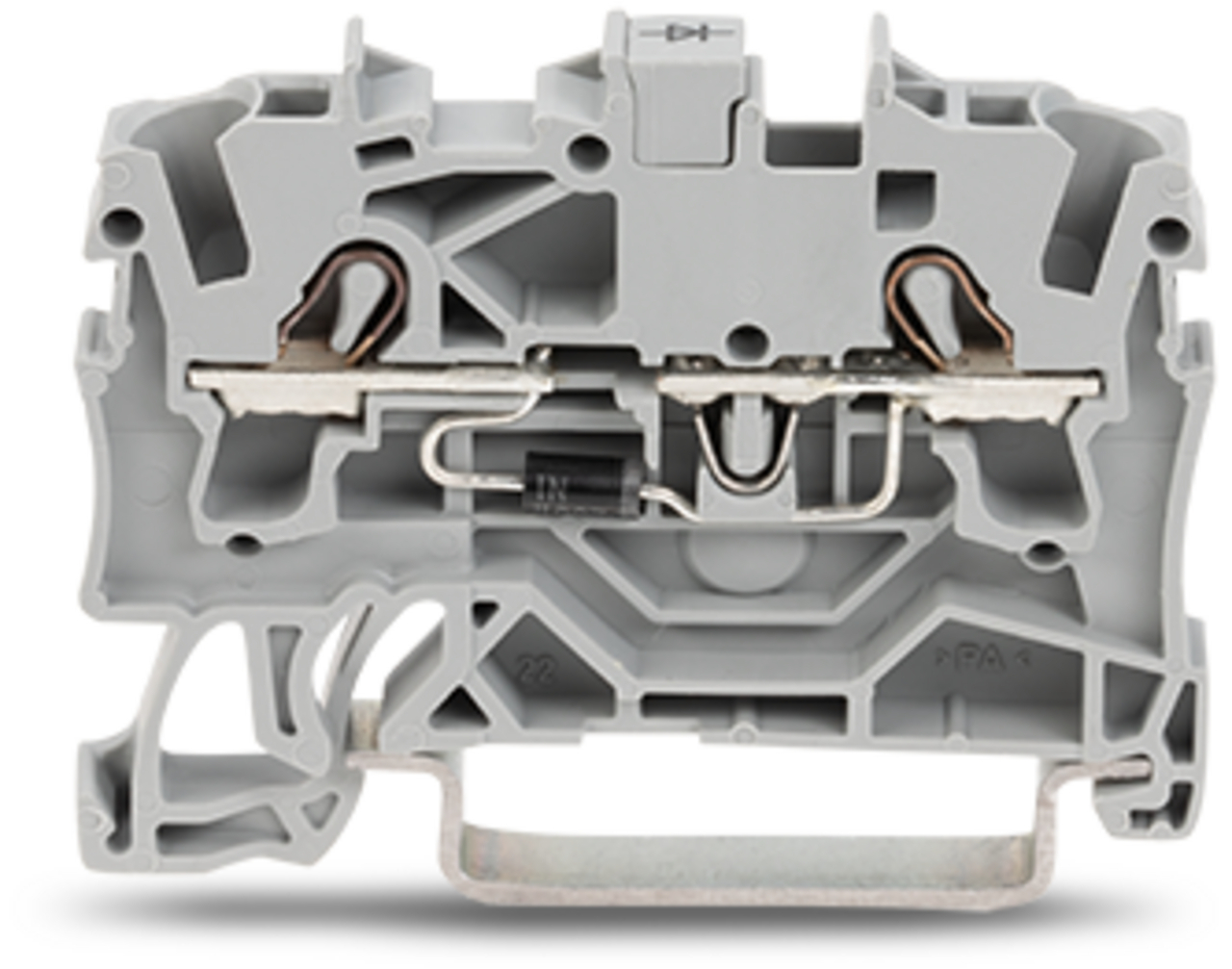

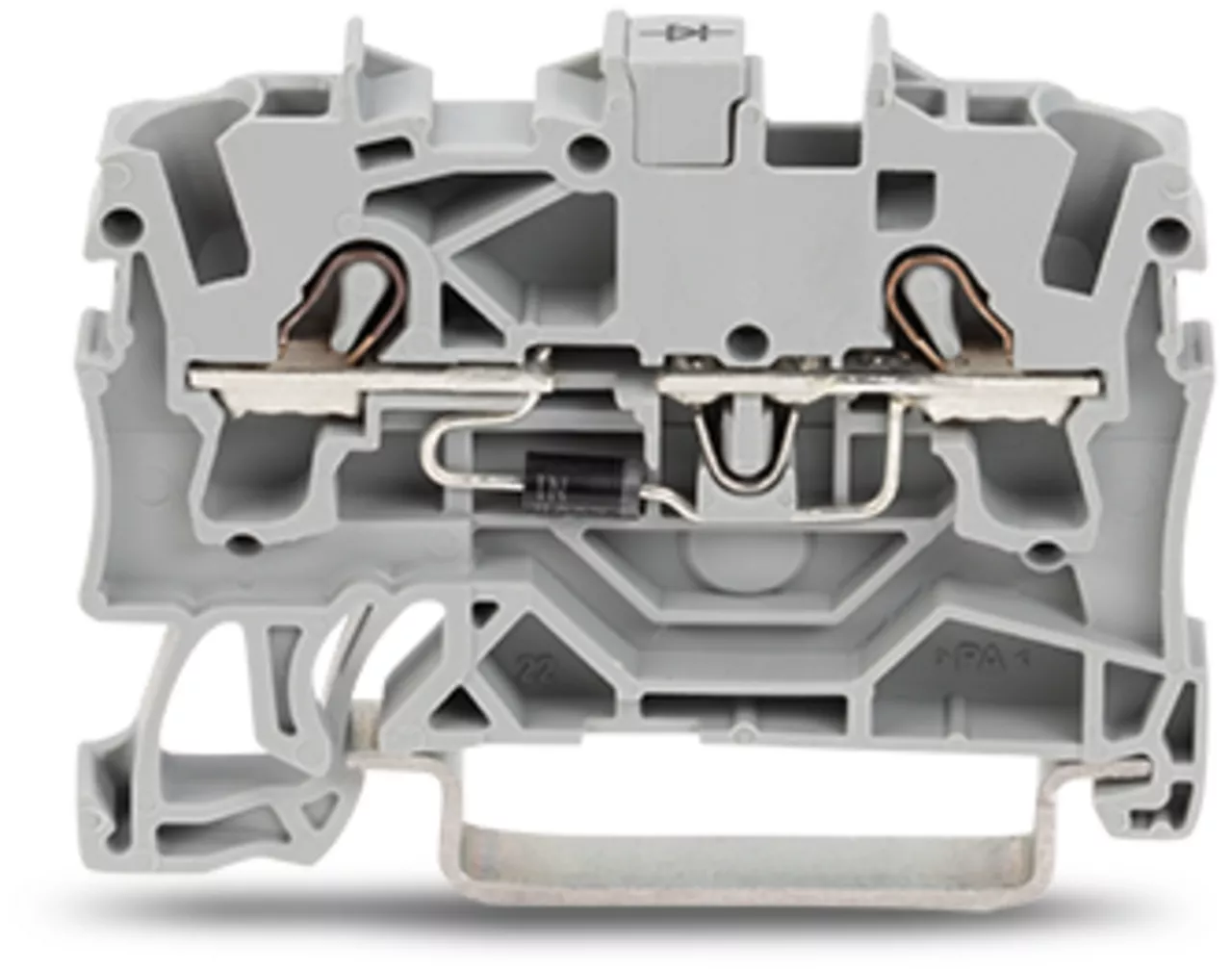

Złączka do zabudowy elementów 2-przewodowe, szara 2002-1211/1000-737
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2002-1211/1000-737 |
| GTIN(EAN) | 4045454586515 |
| Price unit | piece |
| Catalog price | 40,97 zł (33,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka do zabudowy elementów; 2-przew.; z rezystorem 2K0; BF 0207; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,19 g |
| ETIM class: | Component terminal block |
| Material insulation body: | Thermoplastic |
| Height: | 48.5 mm |
| Operating temperature: | -25 - +70 °C |
| Connectable conductor cross section solid-core: | 0.25 - 4 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Type of component: | Resistor |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Grey |
| Width: | 5.2 mm |
| Depth: | 32.9 mm |
