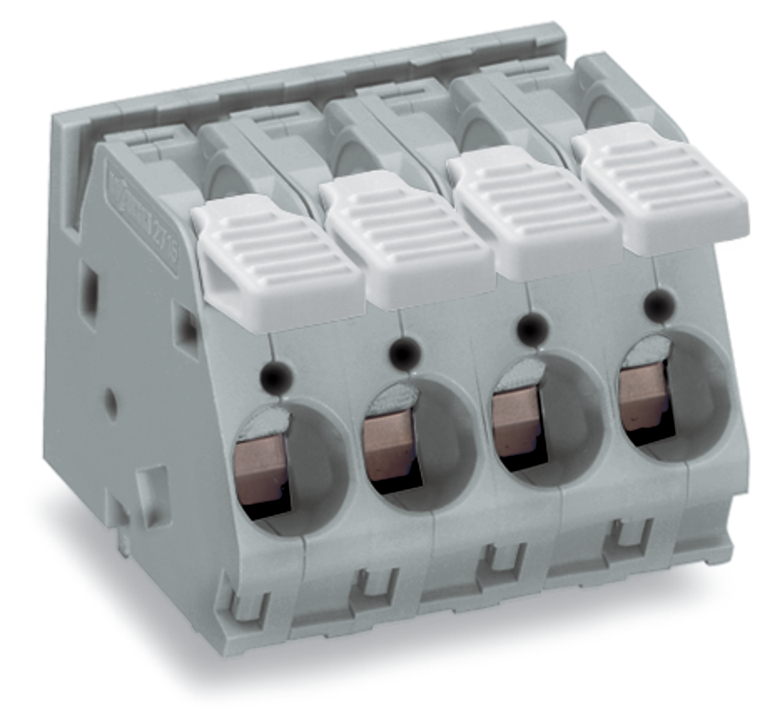

Złączka do płytek drukowanych dźwignia 16 mm² RM 10 mm 4-bieg, szara 2716-154
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2716-154 |
GTIN(EAN) | 4045454739355 |
Price unit | piece |
Catalog price | 46,95 zł (38,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złącze do PCB; dźwignia; 16 mm²; raster 10 mm; 4-bieg.; CAGE CLAMP®; możliwość mostkowania; 16,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 41,89 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Rated current In: | 76 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 16 mm² |
Connectable conductor cross section multi-wired: | 1.5 - 16 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |
Length pin: | 4.5 mm |
Modular spacing connections: | 10 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 28.8 mm |
Connectable conductor cross section solid-core: | 1.5 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 10 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | Other |
Number of electrical connections: | 4 |
