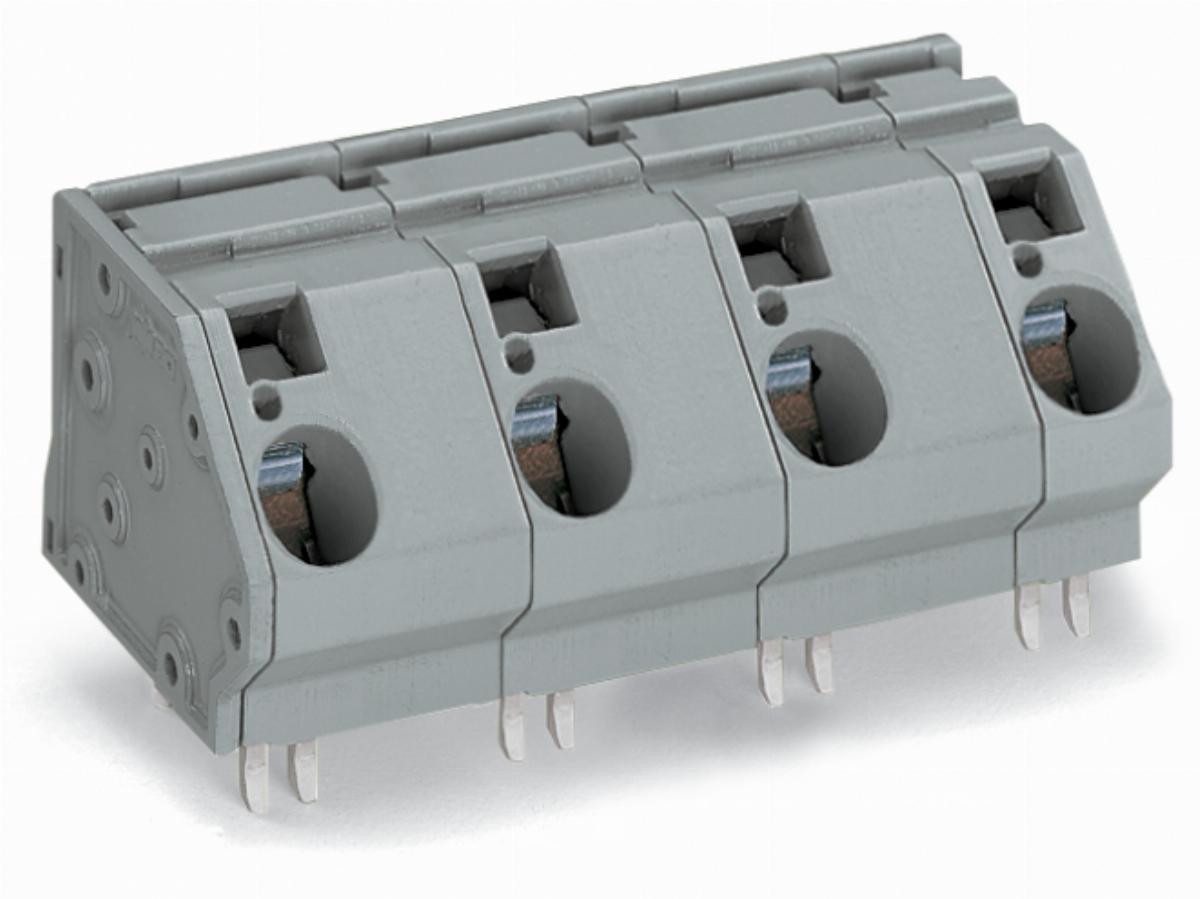

Złączka do płytek drukowanych 16 mm² raster 20mm 3-bieg, szara 745-653/007-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 745-653/007-000 |
| GTIN(EAN) | 4055143397735 |
| Price unit | piece |
| Catalog price | 26,80 zł (21,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
złącze do PCB; 16 mm²; raster 20 mm; 3-bieg.; CAGE CLAMP®; możliwość mostkowania; długość pinu lutowniczego 5 mm; 16,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 35,34 g |
| ETIM class: | Printed circuit board terminal |
| Operating temperature: | -60 - 105 °C |
| Material insulation body: | Thermoplastic |
| Housing colour: | Grey |
| Rated current In: | 76 A |
| Material connection surface: | Tin |
| Rated surge voltage: | 12 kV |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 16 mm² |
| Connectable conductor cross section multi-wired: | 0.2 - 16 mm² |
| Type of PCB fastening: | Connecting contact |
| Rated voltage: | 1000 V |
| Pollution degree: | 2 |
| Connection type PCB: | Soldering connection |
| Connection type conductor: | Spring clamp connection |
| Length pin: | 5 mm |
| Modular spacing connections: | 20 mm |
| Type of banding: | None |
| Over voltage category: | III |
| Height: | 27 mm |
| Connectable conductor cross section solid-core: | 0.2 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 10 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Type of fastening: | Solder |
| Number of levels: | 1 |
| Angle PCB/conductor connection: | 45°/135° (downwards inclined) |
| Number of electrical connections: | 3 |
