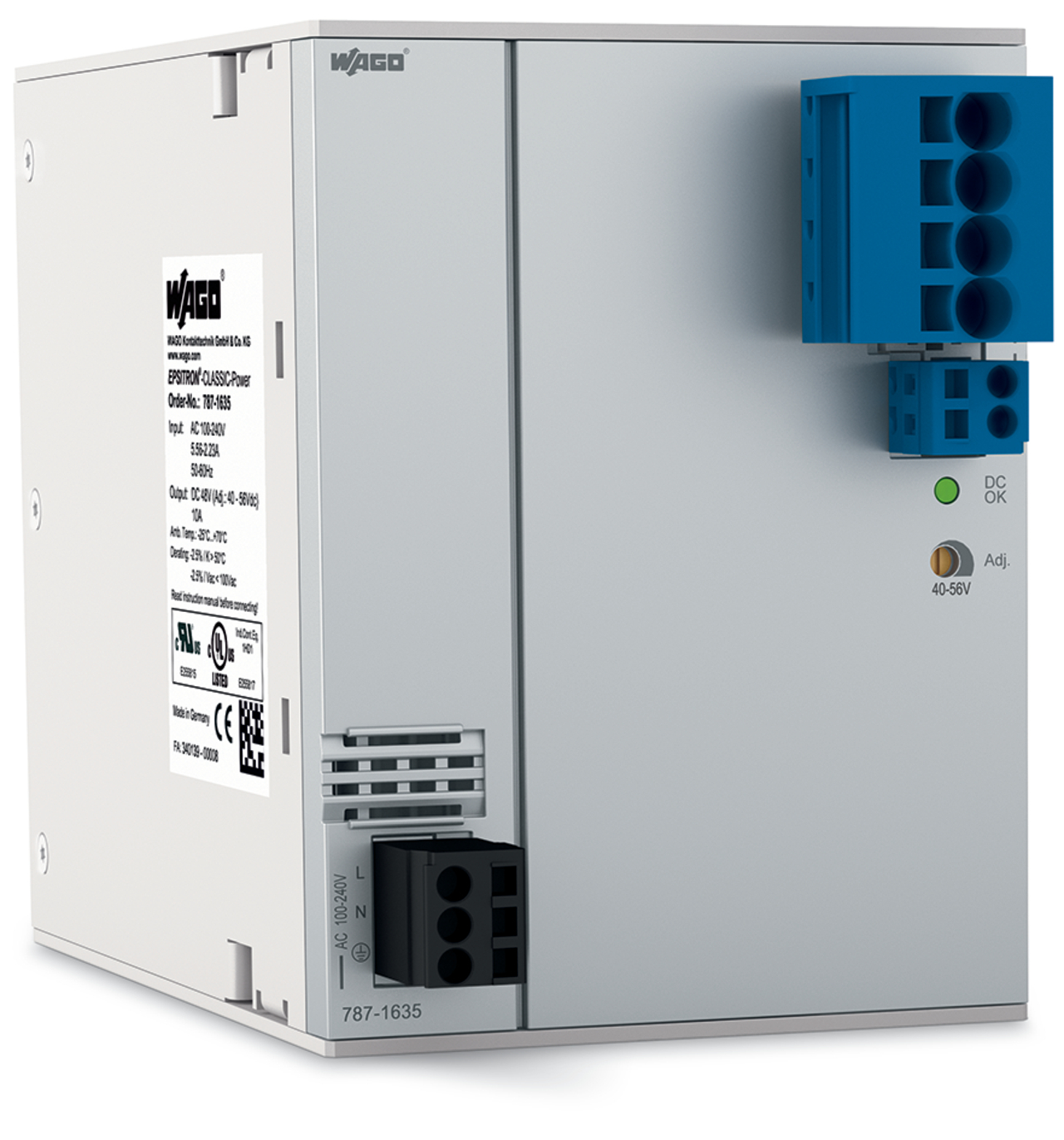

Zasilacz impulsowany po stronie pierwotnej Classic 1-ph 787-1635
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 787-1635 |
| GTIN(EAN) | 4055143060547 |
| Price unit | piece |
| Catalog price | 1 662,96 zł (1 352,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
-
Przetnij Sprawdź Wkęć !
Zrób zakupy produktów Wago w ElektRa Hurtownia Elektroteczniczna a otrzymasz nagordy !
Description:
zasilacz impulsowany po stronie pierwotnej; Classic; 1-faz.; napięcie wyjściowe 48 V DC; prąd wyjściowy 10 A; TopBoost; zestyk DC OK
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,6 kg |
| ETIM class: | DC-power supply |
| Type of electric connection: | Spring clamp connection |
| 1st secondary output voltage: | 40 - 56 V |
| Short-circuit-proof: | yes |
| Width: | 95 mm |
| Depth: | 170 mm |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Suitable for safety functions: | no |
| Output voltage stabilized: | yes |
| Height: | 127 mm |
| Modular version: | no |
| Nominal value output current 1: | 10 A |
| Max. output current 1: | 10 A |
| Rated supply voltage AC 50 Hz: | 85 - 264 V |
| Rated supply voltage DC: | 120 - 300 V |
| Rated supply voltage AC 60 Hz: | 85 - 264 V |
| Degree of protection (IP): | IP20 |
| Secondary voltage adjustable: | yes |
| Stabilized: | yes |
| Voltage type (supply voltage): | AC/DC |
| Nominal value output voltage 1: | 48 V |
| Direct mounting possible: | no |
| Width in number of modular spacings: | 6 |
