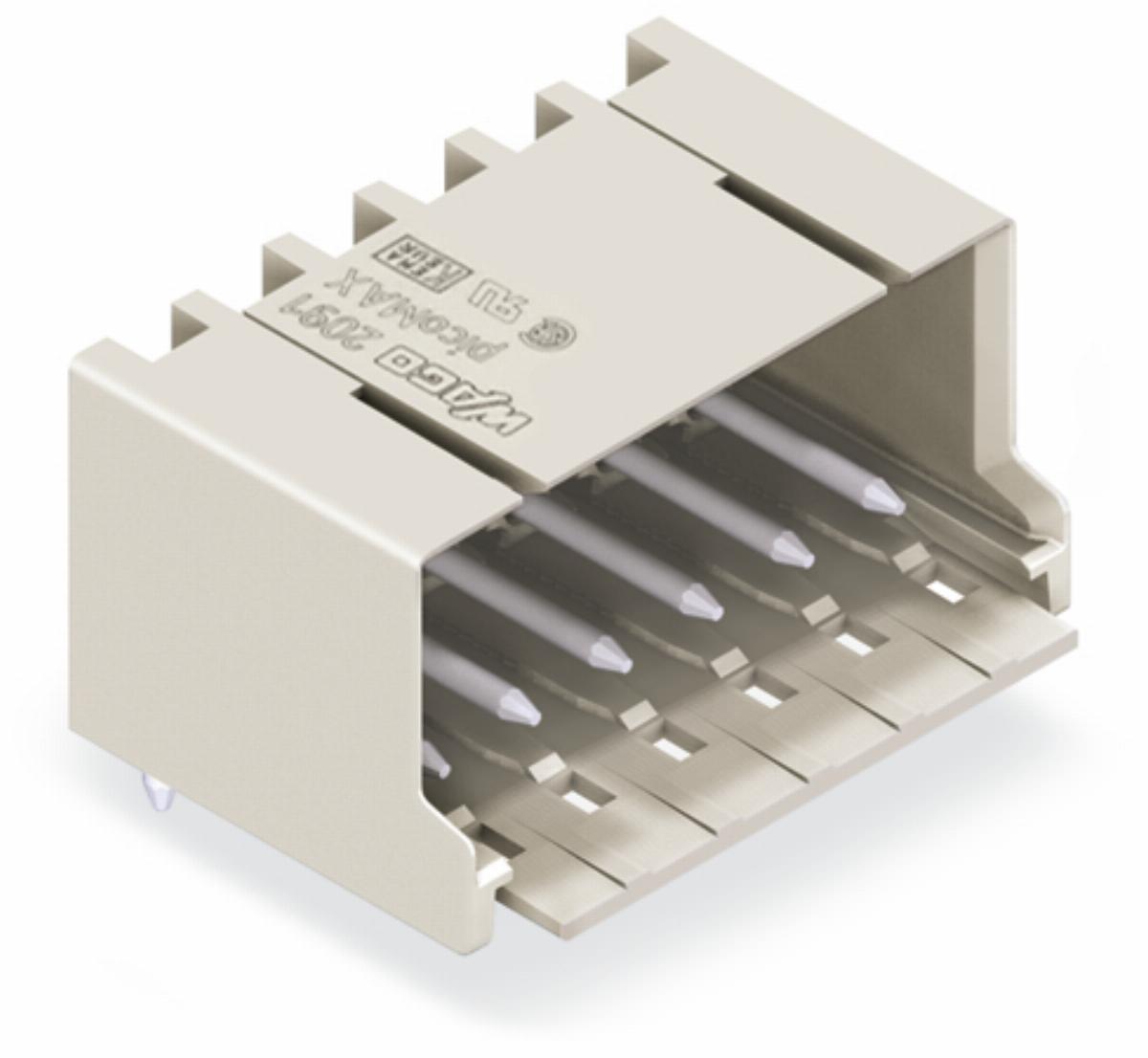

Wtyk THT pin lutowniczy Ø 1 mm konstrukcja kątowa, jasnoszary 2091-1432
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2091-1432 |
GTIN(EAN) | 4050821161141 |
Price unit | piece |
Catalog price | 14,81 zł (12,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk THT; pin lutowniczy Ø 1,0 mm; konstrukcja kątowa; raster 3,5 mm; 12-bieg.; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 4,06 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 0°/180° (horizontal) |
Contact type: | Pin |
Type of fastening: | Solder |
Type of PCB fastening: | Connecting contact |
Rated current In: | 10 A |
Type of electric connection: | Soldering connection |
Type of banding: | None |
Over voltage category: | III |
Rated surge voltage: | 2.5 kV |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Modular spacing contacts: | 3.5 mm |
Connector model: | Free connector |
Suitable for PCB thickness: | 2 mm |
Pollution degree: | 2 |
Material of contact surface: | Tin |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 160 V |
Number of poles: | 12 |
Number of plug-in contact rows: | 1 |
Modular spacing connections: | 3.5 mm |
Length pin: | 3.6 mm |
Diameter connection pin: | 1 mm |
